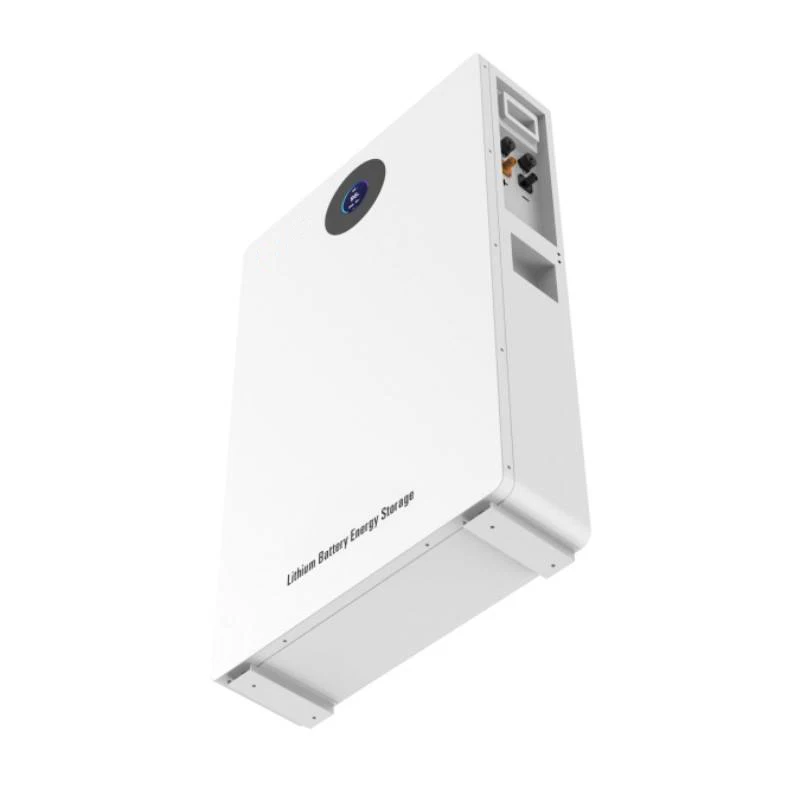

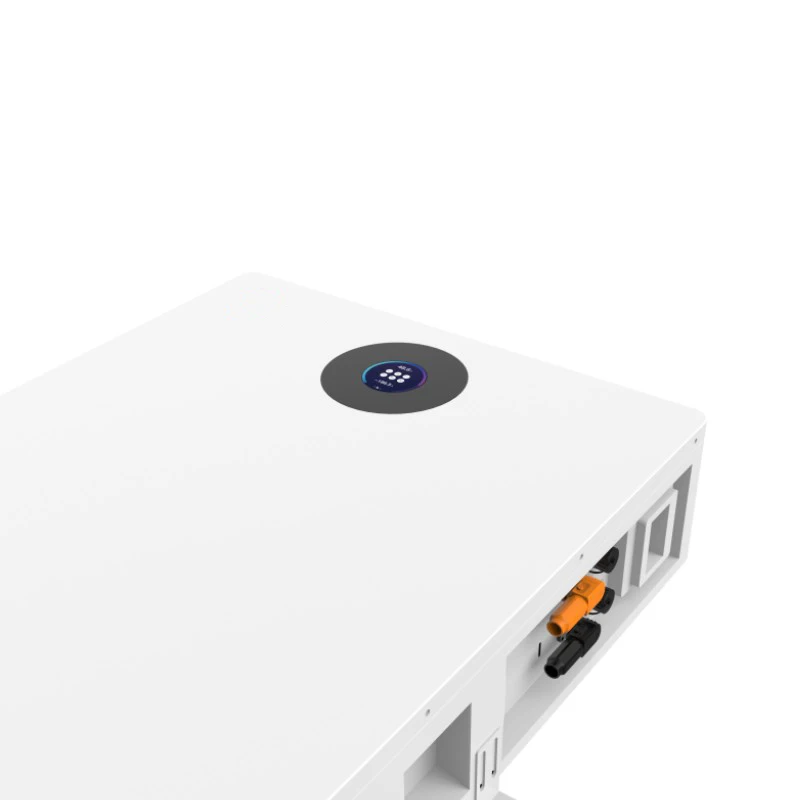

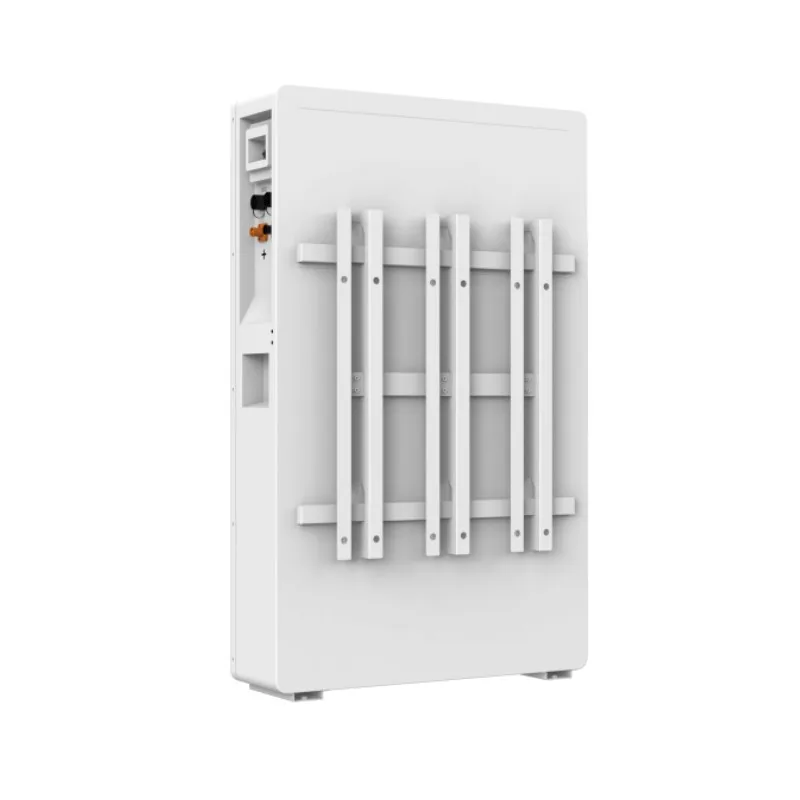

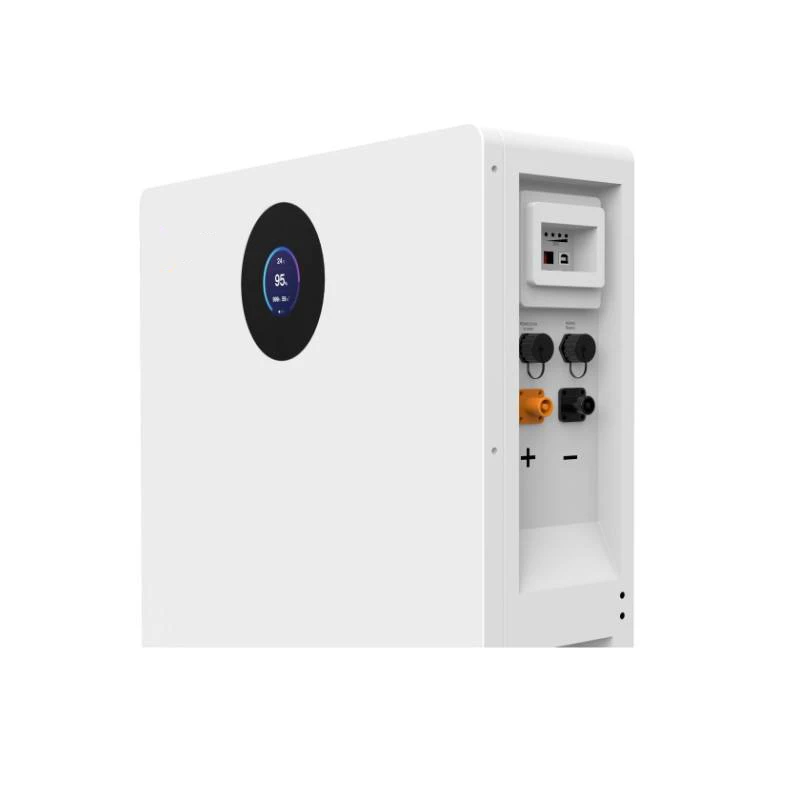

PUFA Home Powerwall Energy Storage Lifepo4 Battery 48V 100Ah 200Ah 5Kwh 10Kwh Power Wall Solar Lithium Ion Battery
- Overview
- Recommended Products
* Long life and safety
Vertical industry integration ensures more than 6000 cycles with 80% DoD.
* Easy to install and use
Small size, minimizing installation time and cost
Compact and stylish design suitable for your sweet home environment.
* Intelligent
Vertical industry integration ensures more than 6000 cycles with 80% DoD.
* Easy to install and use
Small size, minimizing installation time and cost
Compact and stylish design suitable for your sweet home environment.
* Intelligent
Each battery with independent BMS system manages power output smartly and effectively.
* Scalability
* Scalability
You can use 4 batteries in parallel at the same time, and can provide a maximum of 20kwh for your use.
* Compatiblity
* Compatiblity
Compatible with most of the available Hybrid inverters.
Products Description
Parameter
MODEL |
EOS |
|
MAIN INFO |
||
Rated Voltage |
51.2V |
|
Rated Capacity |
200Ah |
|
Battery Power |
10.24kWh |
|
Battery Type |
LFP |
|
Crycling Lifespan |
6000 Cycles |
|
Lifetime |
20 Years |
|
Max. Parallel Capacity |
9 |
|
CHARGE&DISCHRAGE |
||
Max. Charging Voltage |
57.6V |
|
Over Discharging Voltage |
44.8V |
|
Max. Charging Current |
150A |
|
Peak Charging Current |
200A (3s) |
|
Max. Discharging Current |
200A |
|
Peak Discharging Current |
220A (3s) |
|
GENERAL |
||
Weight |
88kg,(194lb) |
|
Dimension(L*W*H) |
1014*620*191mm(3*2*0.6ft) |
|
Communication |
CAN / RS485 / USB / WiFi / Bluetooth |
|
Storage Condition |
6 months @25℃;3 months @35℃;1 months @45℃ |
|
Charging Temp. Range |
0~45℃(32~113℉) |
|
Discharging Temp. Range |
-10~45℃(14~113℉) |
|
Cooling Method |
Neutral Cooling |
|
Protection Grade |
IP65 |
|
STANDARD |
||
Transportation |
UN38.3,MSDS |
|
Safety |
EN55032,EN55024,EN61000-3-2,EN61000-3-3 |
|

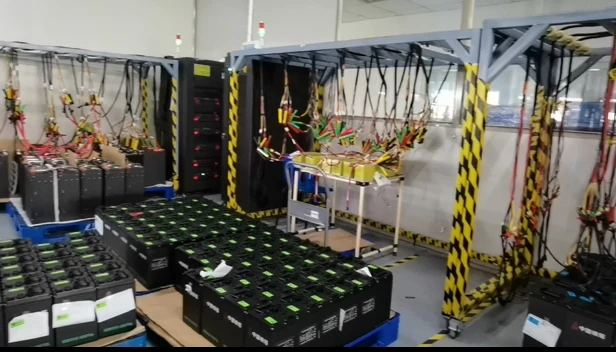

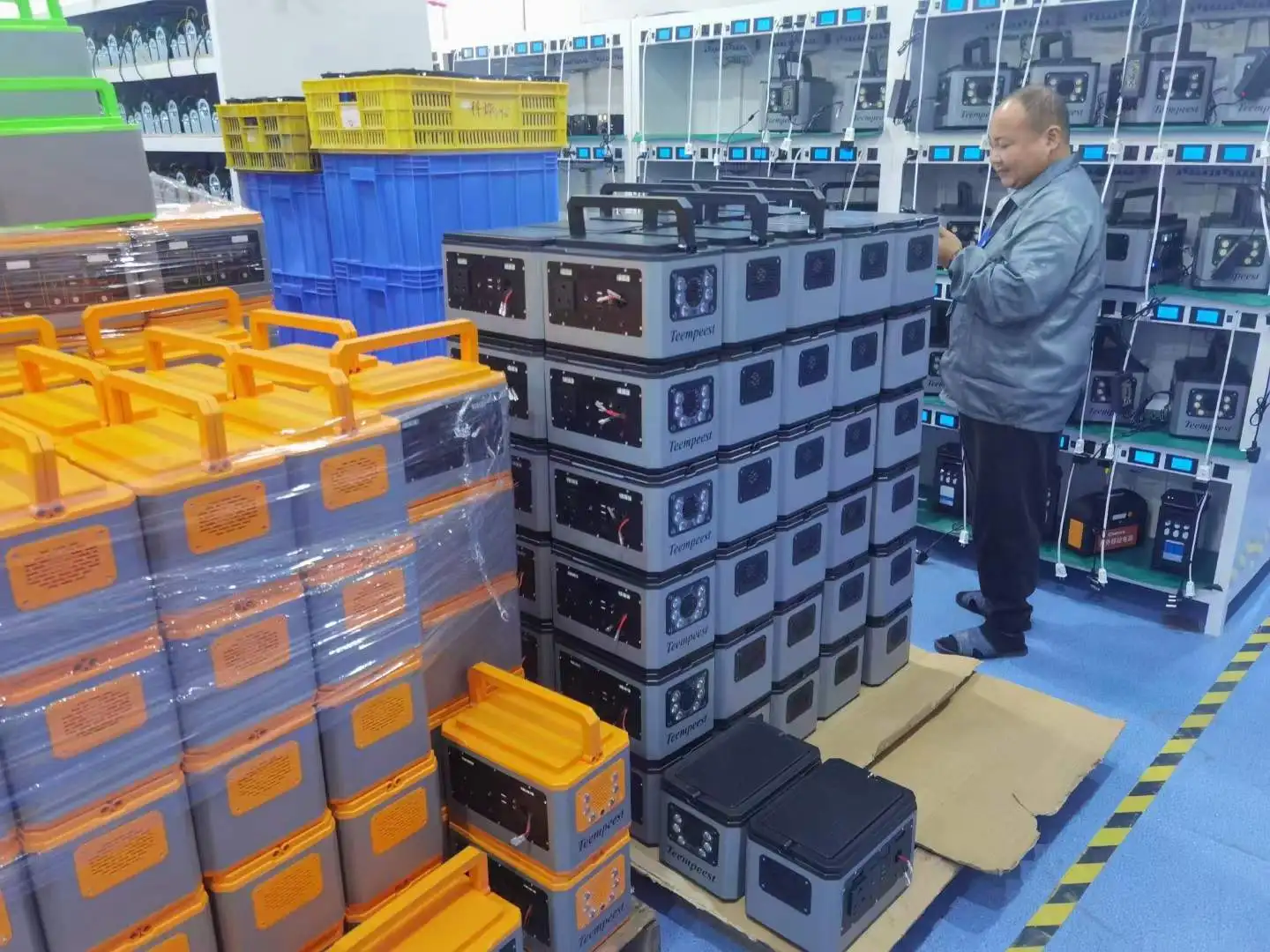

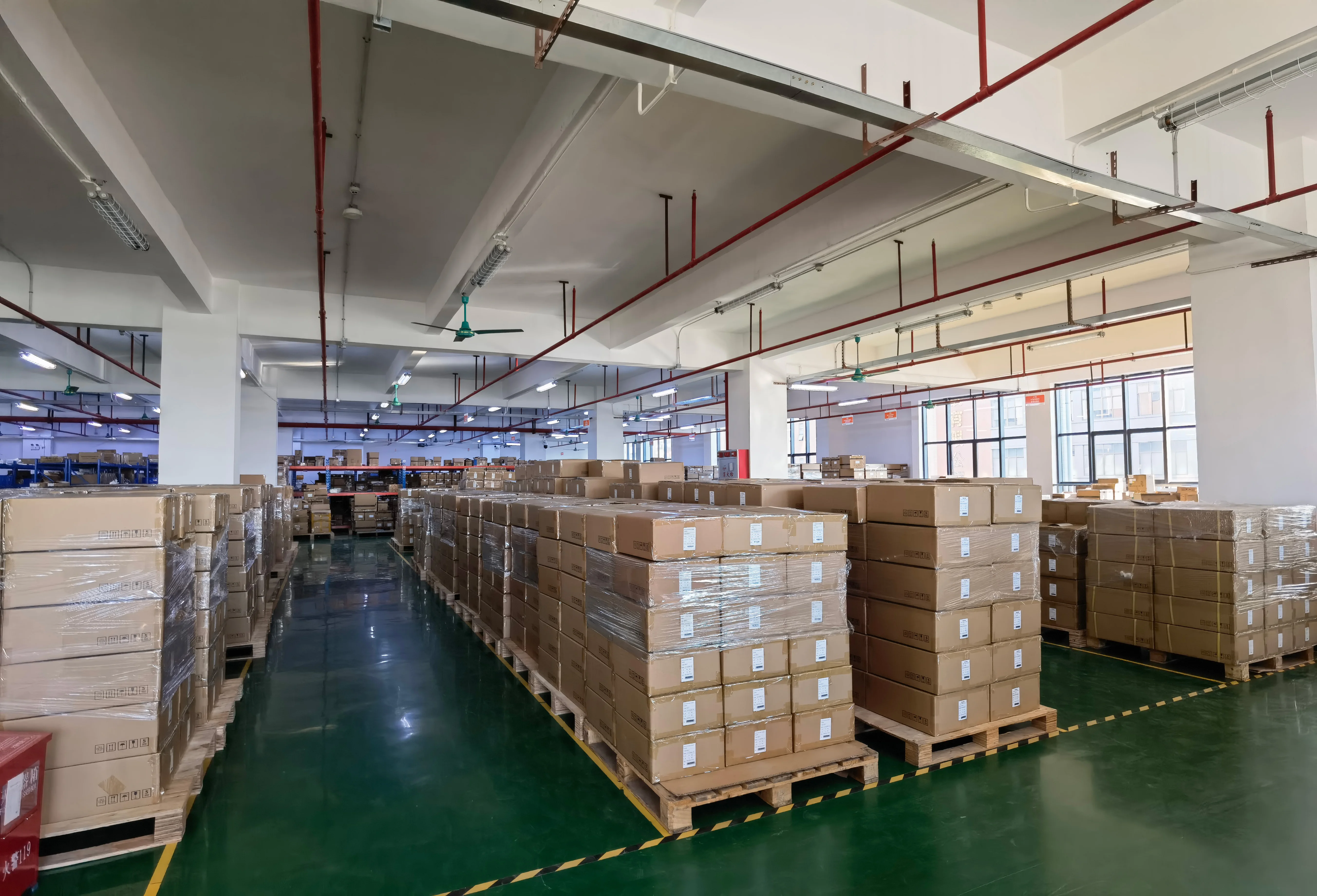

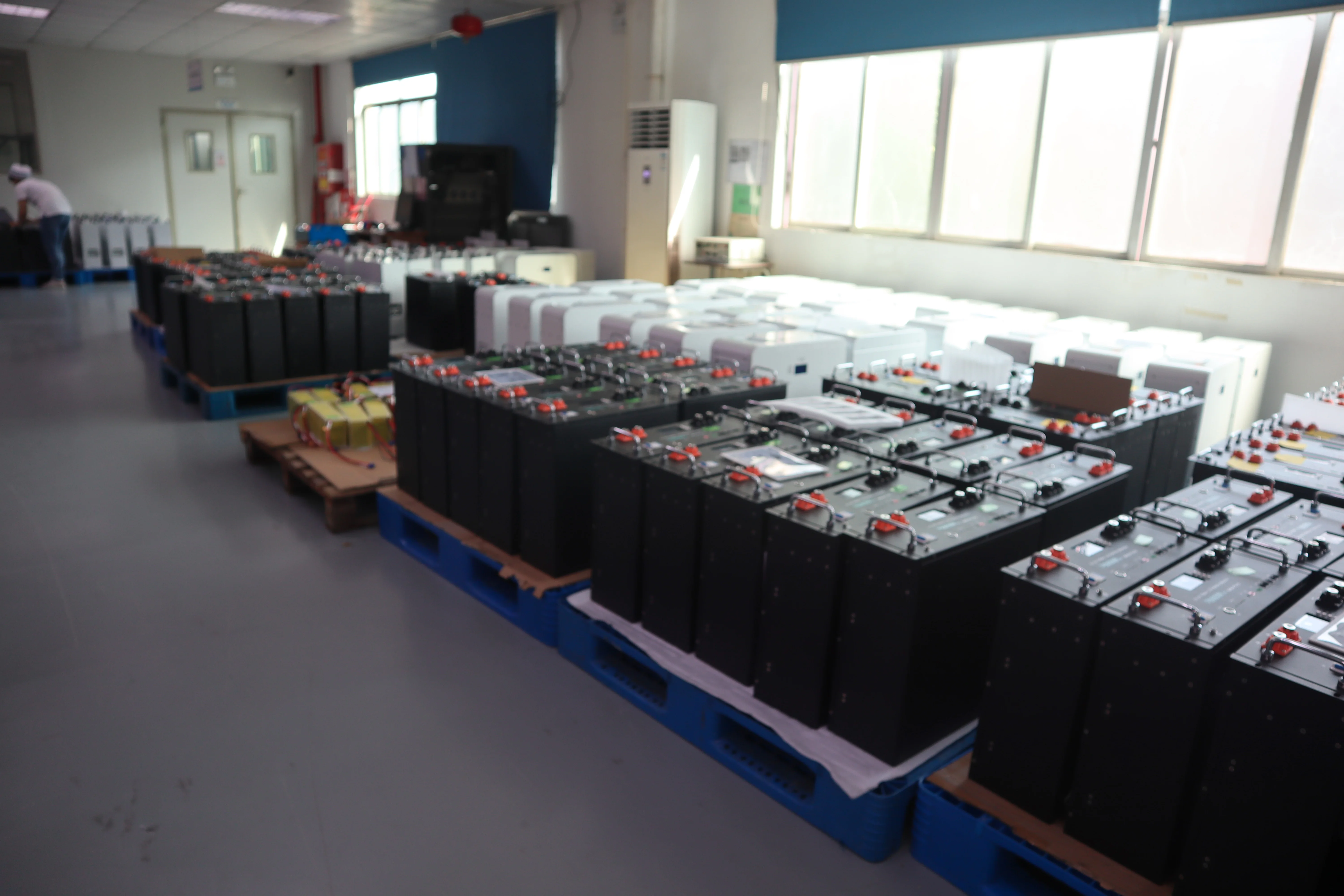

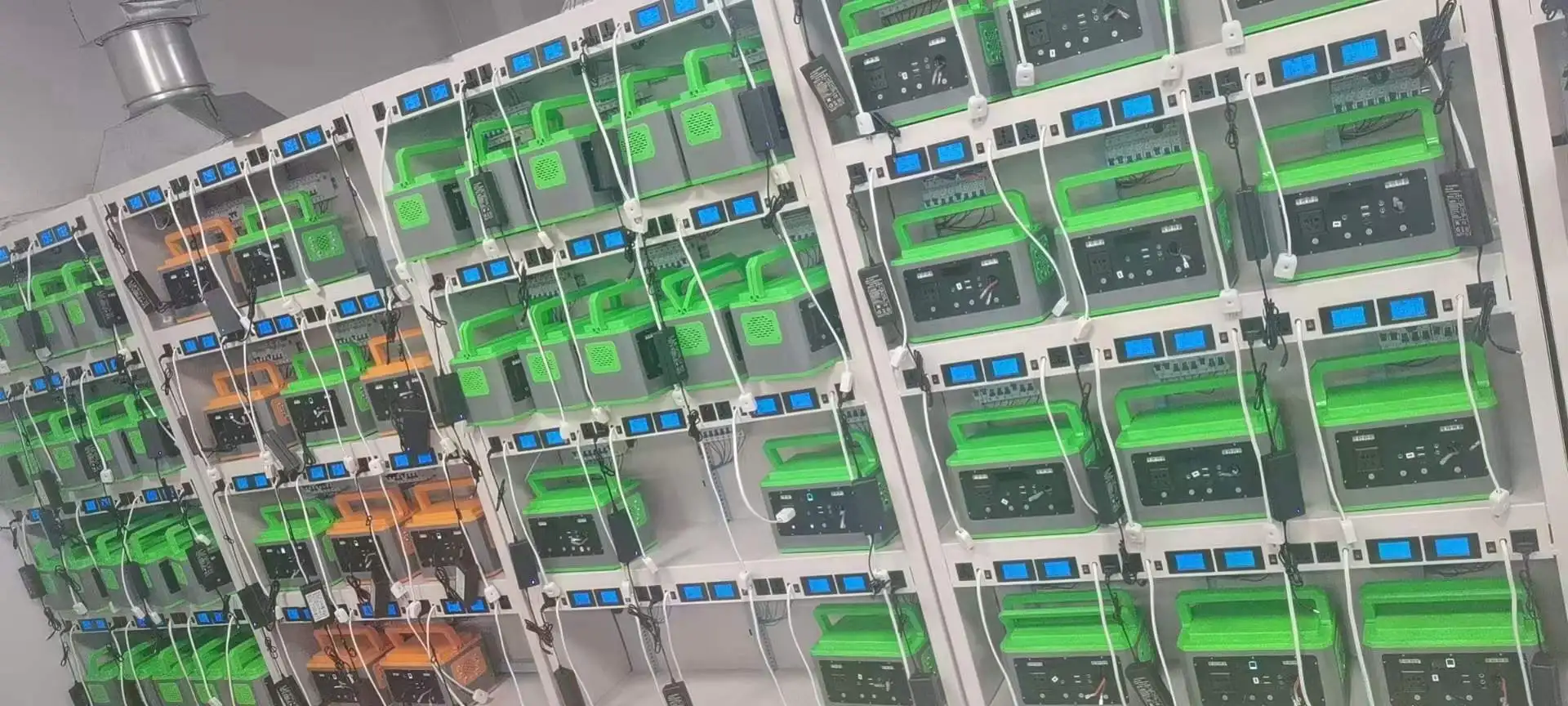

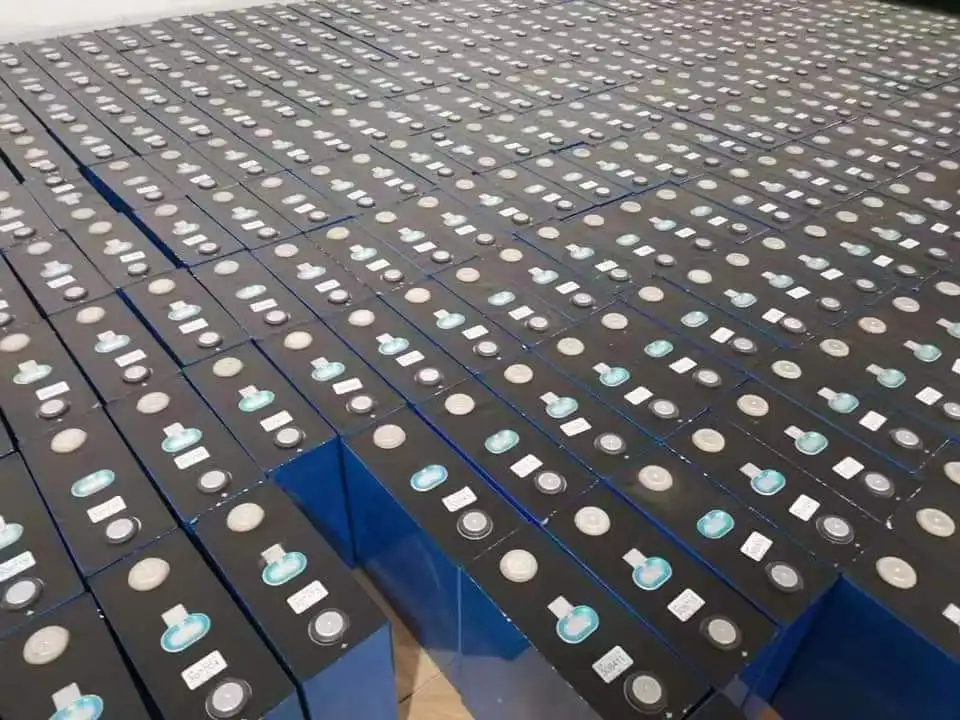

Our Factory
Certifications
UL, FCC, IECS, PSW+METI, C-TICK, CE, ROHS, MSDS, UN38.3, ISO, IEC
from the national center for quality supervision and Inspection of battery products approved
Payment and Delivery
Payment Term |
T/T |
EXW |
30% T/T in advance, paid the balance before shipment |
||
FOB |
|||||
CNF |
30% T/T in advance, paid the balance against copy of B/L |
||||
CIF |
|||||
L/C |
L/C amount above 50,000 usd, we can accept L/C at sight |
||||
West Union |
Amount lower than 5000usd |
||||
Delivery Time |
7~10days after receiving payment for one container |
||||
