Introducing, the PUFA OEM ODM AC Ocpp Smart Charging Single Pile Electric Cars EV Charger, a revolutionary product that is designed to make charging your electric vehicle easier and more convenient than ever before.
This cutting-edge EV charger is perfect for both residential and commercial use, offering a sleek and compact design that will complement any setting. The single pile design makes it easy to install in any location, whether you're charging your car at home or at a public charging station.

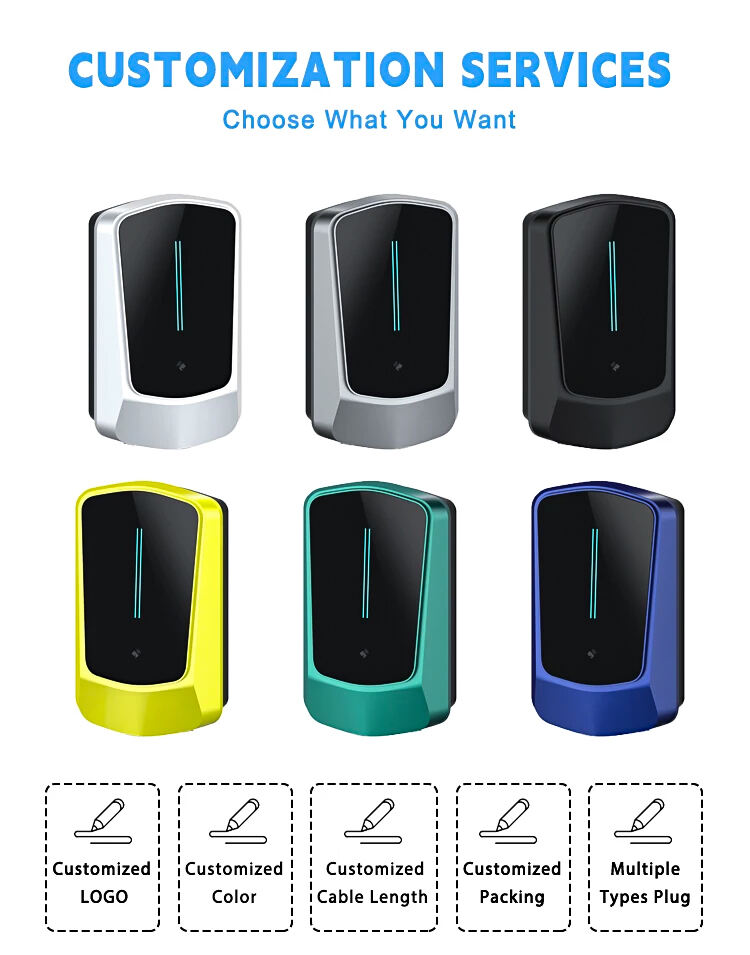

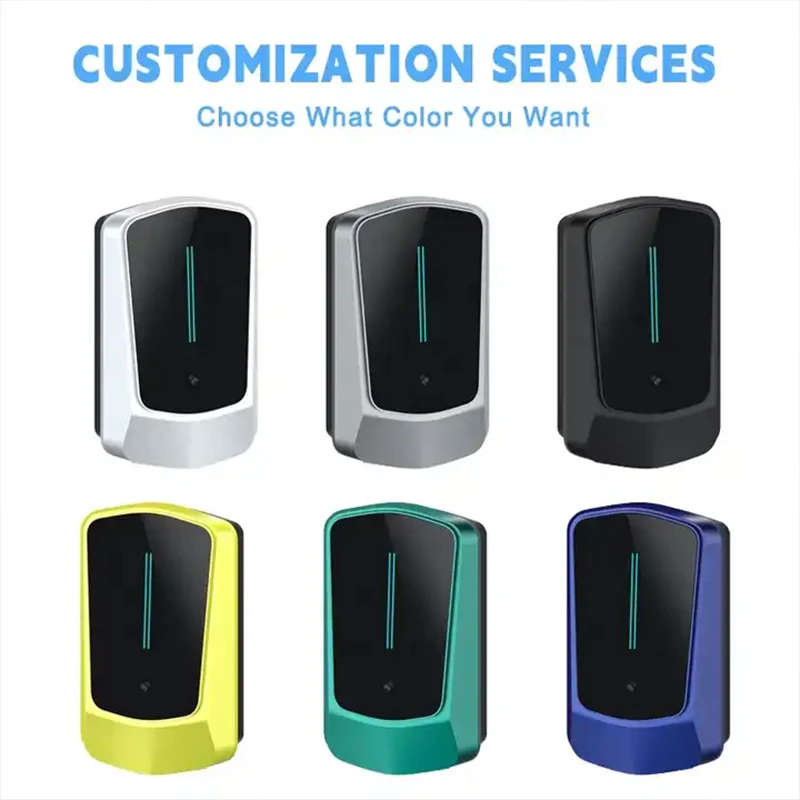

With the ability to support both OEM and ODM customization, this EV charger can be tailored to meet your specific needs and requirements. Whether you're looking to incorporate branding or design elements into the charger, or you need a specific charging capacity, the PUFA OEM ODM AC Ocpp Smart Charging Single Pile Electric Cars EV Charger can be customized to meet your exact specifications.
But what sets this EV charger apart from the competition is its smart charging capabilities. With OCPP (Open Charge Point Protocol) functionality, you can easily monitor and manage your charging sessions remotely, making it easy to keep track of your charging history and schedule future charging sessions.
Not only does this EV charger offer convenience and customization options, but it is also incredibly efficient and reliable. The AC charging capabilities ensure fast and efficient charging, so you can spend less time waiting for your car to charge and more time hitting the road.
In addition, the PUFA OEM ODM AC Ocpp Smart Charging Single Pile Electric Cars EV Charger is designed with safety in mind. With built-in protections to prevent overcharging, overheating, and other potential hazards, you can rest easy knowing that your electric vehicle is in good hands.
The PUFA OEM ODM AC Ocpp Smart Charging Single Pile Electric Cars EV Charger is a top-of-the-line product that offers convenience, customization, efficiency, and safety all in one. Whether you're a residential EV owner or a commercial charging station operator, this EV charger is the perfect solution for all your charging needs. Experience the future of charging with the PUFA OEM ODM AC Ocpp Smart Charging Single Pile Electric Cars EV Charger
Data sheet |

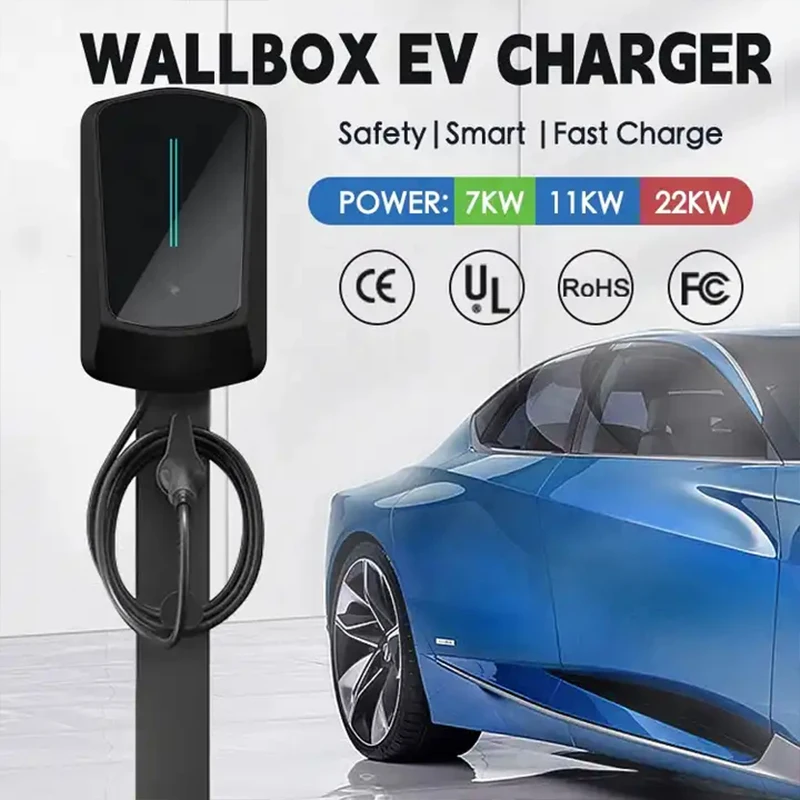

Model |
7KW |
11KW |
22KW |
Optional |
|||
Input |
Power Supply |
L+N+PE |
L1+L2+L3+N+PE |
L1+L2+L3+N+PE |
||||
Rated voltage |
AC 230V |
AC 400V |
AC 400V |
|||||
Rated current |
32A |
16A |
32A |
|||||
Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
|||||
Output |
Output voltage |
AC 240V |
AC 400V |
AC 400V |
||||
Output current |
32A |
16A |
32A |
|||||
Rated power |
7KW |
11KW |
22KW |
|||||
User interface |
Cable length |
5M |
Customized |
|||||
Outer case |
PC940 |
|||||||
LED indicator |

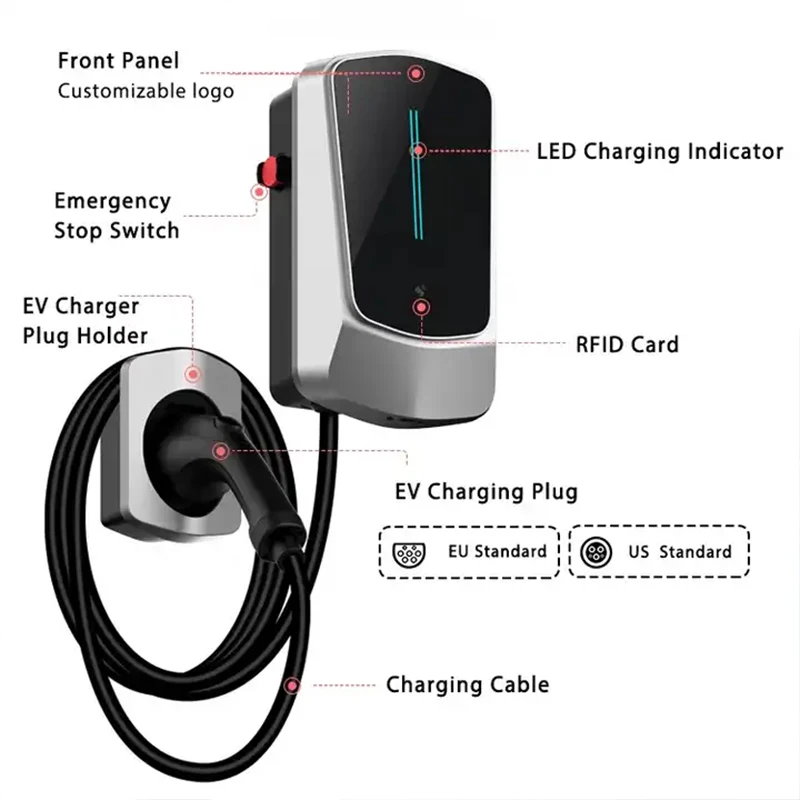

Green/blue/red - blue - standby; green - charger connected to the vehicle, flashing - charging; red - abnormal |
|||||||
Emergency stop |
Include |
|||||||
Start-up mode |
Plug-and-Play |
Yes |
||||||
RFID Reader |
— |
N |
||||||
Screen |
4.3-inch |
— |
Y |
|||||
Network |
4G |
— |
Y |
|||||
RJ45 |
— |
N |
||||||
Bluetooth/WiFi |
— |
N |
||||||
Security |
RCD |
A+DC6mA |
||||||

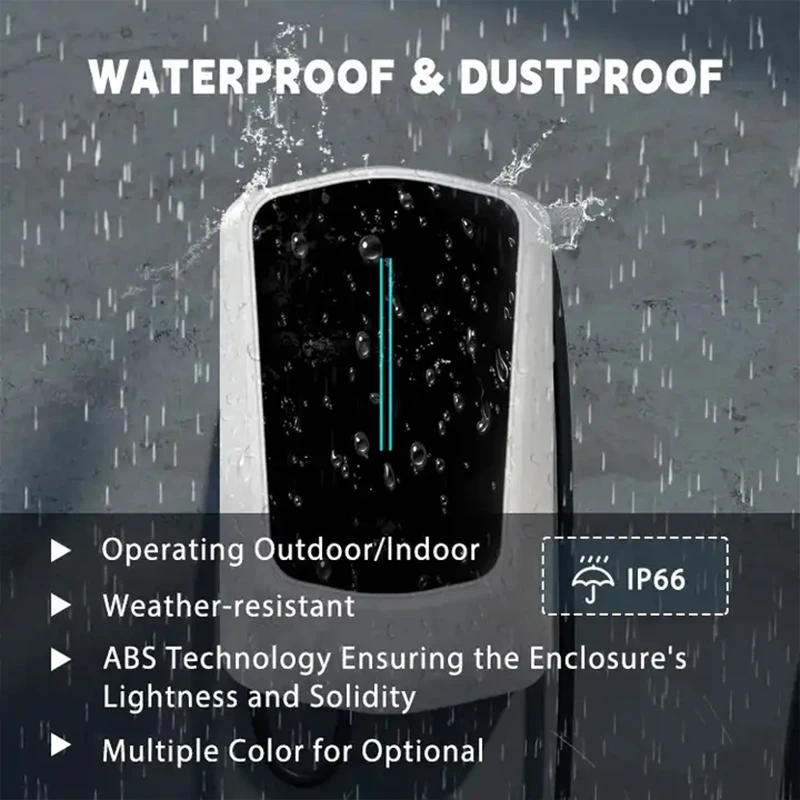

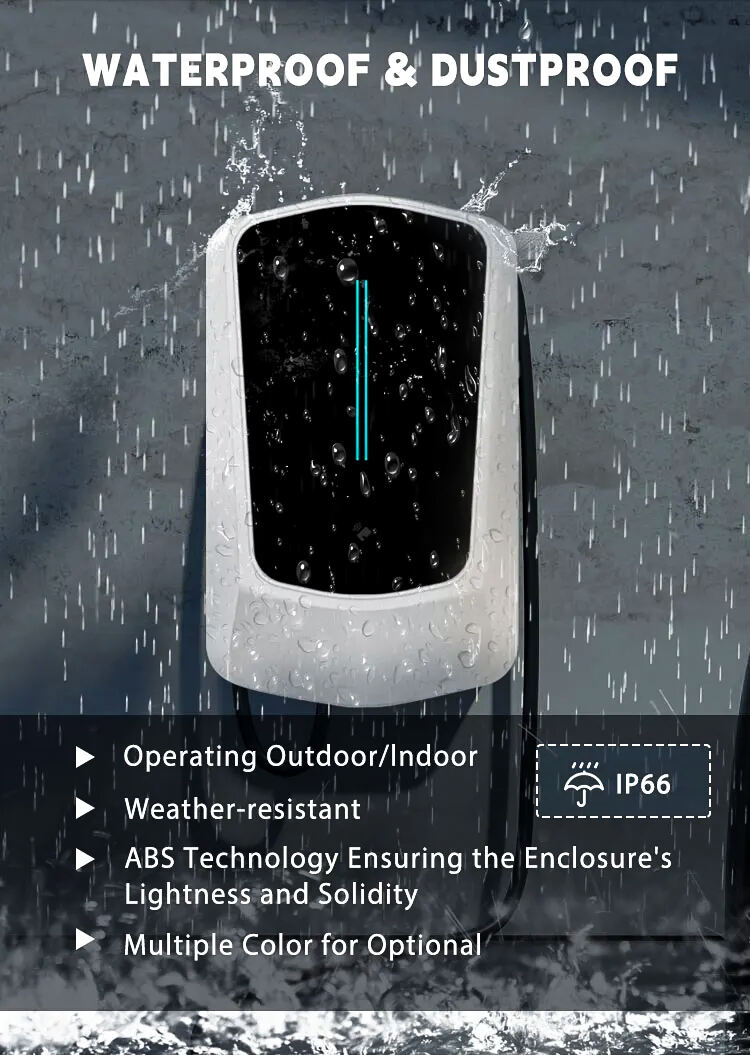

Ingress Protection |
IP66 |
|||||||
Surge Protection |
IK10 |
|||||||
Electrical Protection |
Overvoltage protection, Undervoltage protection, grounding protection, lightning protection, leakage protection, flame retardant protection, overcurrent protection, intelligent temperature control protection, relay adhesion protection, input shutdown protection, vehicle specification level protection vehicle and protective personnel |
|||||||
Warranty |
15 months |
|||||||
Cooling mode |
Natural cooling |
|||||||
Environment |

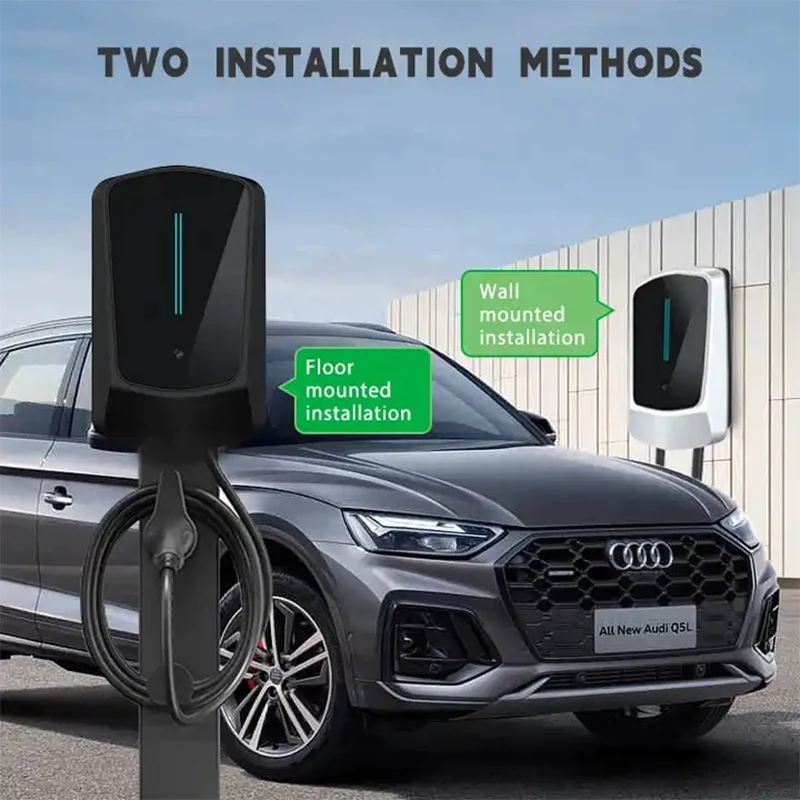

Installation |

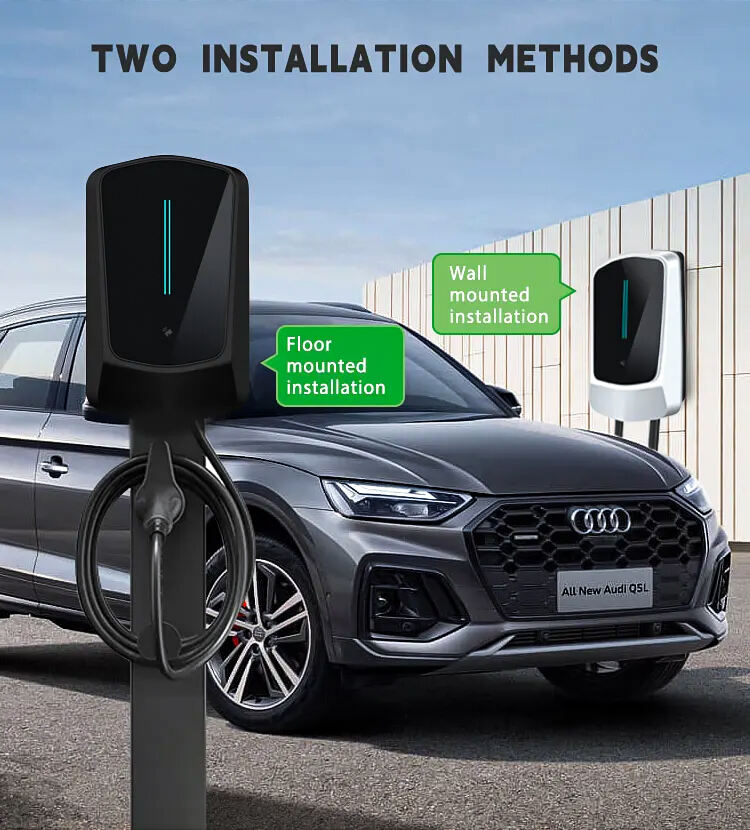

Wall-mount/Pole-mount |
||||||
Working Temperature |
-30℃~+50℃ |
|||||||
Storage temperature |
-40℃~+80℃ |
|||||||
Operating humidity |
5%~95% no moisture condensation or frost |
|||||||
Working Height |
<2000m<>
|
|||||||
Specifications |
Product Dimension |
29*18*10.5cm |
||||||
Package Dimension |
48*23*26cm |
|||||||
Net Weight |
6KG |
|||||||
Gross Weight |
7KG |
|||||||
Packing list |
Charging pile |
1Pcs |
||||||
Instructions |
1Pcs |
|||||||
Cable |
1Pcs |
|||||||
Plug holder |
1Pcs |
|||||||
Screw (for installation) |
1Pcs |
|||||||
Outer packaging |
Carton |
|||||||
Other |
Efficiency |
≥98 |
||||||
Insulation resistance |
≥10MΩ |
|||||||
Power of control module |
≤7W |
|||||||
Terminal |
include |
|||||||
