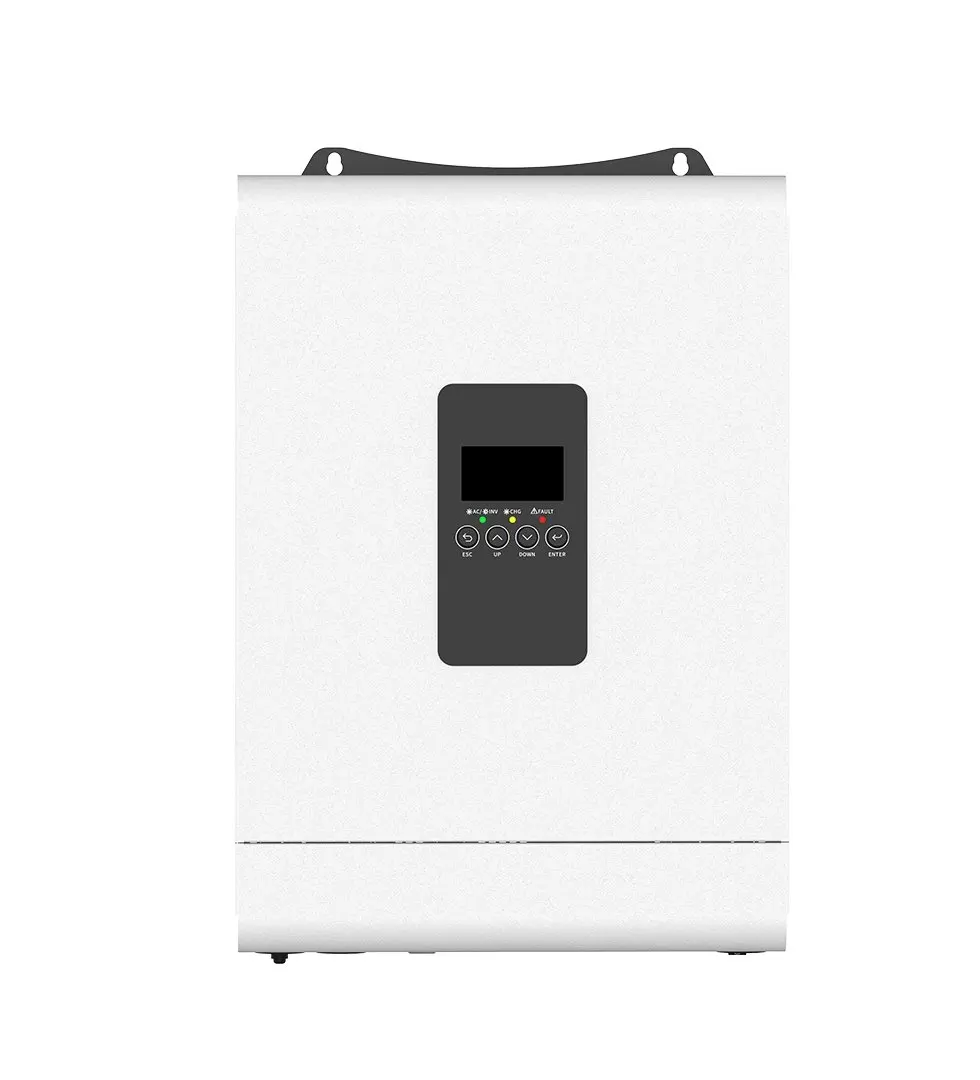

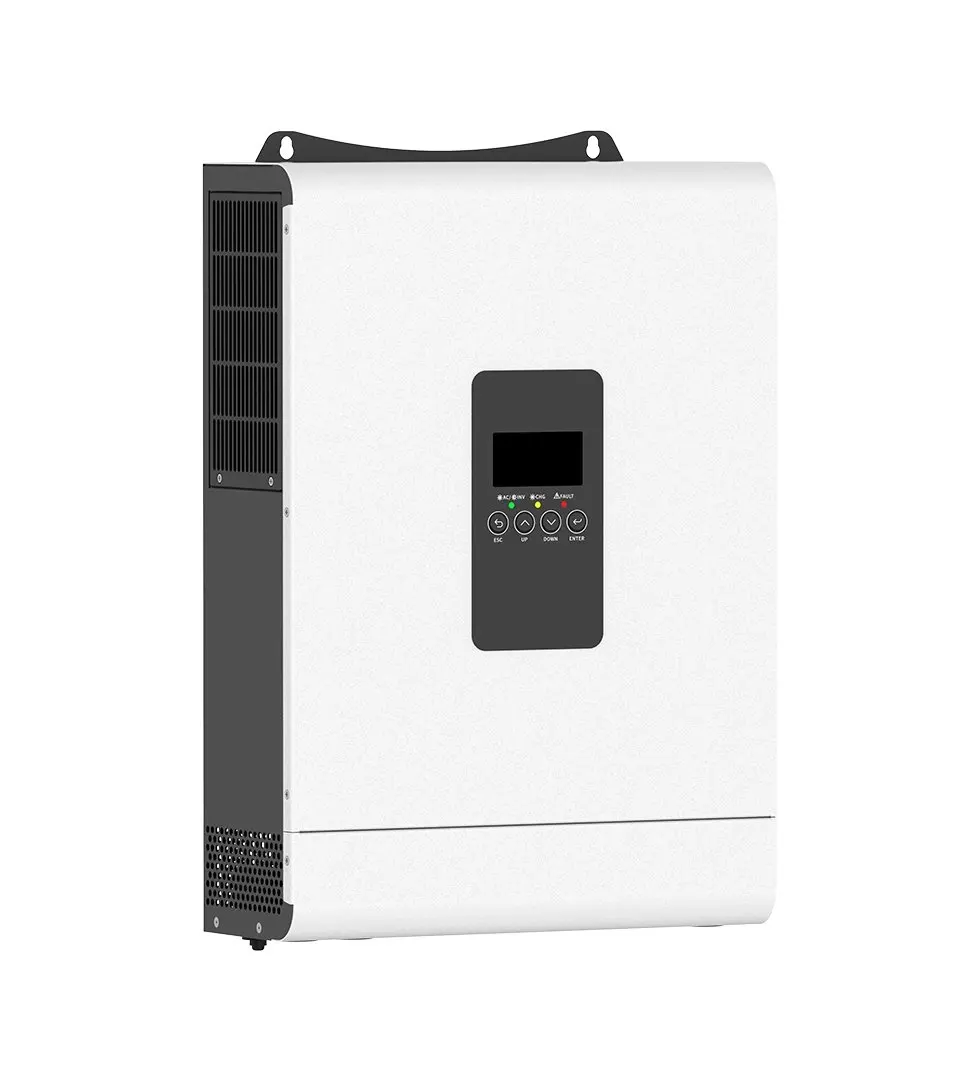

PUFA 1.2Kw 3.6Kw 5Kw Pure Sine Wave Hybrid Solar Inverter 12V 24V 48V Off Grid Solar Inverter for Solar Power System
- Overview
- Recommended Products
Products Description
Specification
Model |
SSA-HLIK2-P1EU |
SSA-HL3K6-P1EU |
SSA-HL5K-P1EU |
|||
AC INPUT |
||||||
Rated Voltage |
208/220/230/240 V a.c.,L+N+PE |
|||||
Rated Frequency |
50 Hz/60 Hz |
|||||
Current
(Maximum Continuous)
|
10 A a.c. |
20 A a.c. |
40 A a.c. |
|||
INVERTER OUTPUT |
||||||
Rated Power |
1.2 kW |
3.6 kW |
5 kW |
|||
Rated Voltage |
208/220/230/240 Va.c.,L+N+PE |
|||||
Power Factor |
1 |
|||||
Wave Form |
Pure Sine Wave |
|||||
Switch Time |
<10 ms (Typical) |
|||||
Inverter Efficiency (Peak) |
90.5%@12 V d.c. |
>92% |
>94% |
|||
Current (Maximum Continuous) |
10 A a.c. |
15.6 A a.c. |
22.7 A a.c. |
|||
Maximum Output Overcurrent Protection |
102% ~ 110% 1min / 110%~ 130% 10s/ 130%~ 150% 3s / 150% 0.2s |
|||||
BATTERY |
||||||
Battery Type |
Lithium/Lead-acid |
|||||
Rated Battery Voltage |
12Vd.c. |
24 V d.c. |
48 V d.c. |
|||
Battery Voltage Range |
10.8-15 V d.c. |
21~ 30.2 Vd.c. |
42~ 60 V d.c. |
|||
Max. Charge Current |
120 Ad.c. |
100 A d.c. |
80 A d.c. |
|||
PV INPUT |
||||||
No. of MPPT Tracker |
1/1 |
|||||
Max. PV Array Power |
1 kW |
5 kW |
6 kW |
|||
Max. DC Voltage |
125 V d.c. |
500 V d.c. |
500 V d.c. |
|||
MPPT Voltage Range |
20-100 V d.c. |
40 ~ 450 V d.c. |
120 ~ 430 Vd.c. |
|||
Start-up Voltage |
20 V d.c. |
60Vd.c. |
120Vd.c. |
|||
MPPT Maximum Charge Current |
60 A d.c. |
100 A d.c. |
80 Ad.c. |
|||
Max. Input Current |
14 A d.c. |
18 A d.c. |
18 Ad.c. |
|||
Isc PV (Absolute Maximum) |
16 A d.c. |
22 A d.c. |
22 A d.c. |
|||
PROTECTION & FEATURE |
||||||
Parallel Function |
No |
No |
Yes (up to 6pcs,optional) |
|||
Protection Degree |
IP20, Indoor only |
|||||
Certifications |
CE (IEC62109-1), EN61000 NRS |
|||||
Other Protection |
Overload, Over temperature, Short circuit |
|||||
GENERAL PARAMETER |
||||||
Storage Temperature |
-10℃ ~ +60℃ |
|||||
Operating Temperature |
-10℃ ~ +50℃ |
|||||
Humidity |
5%~95% (Non-condensing) |
|||||
Operating Altitude |
4000 m (>1000 m Derating) |
|||||
Noise |
<50 dB |
|||||
Dimensions (W"H*D) |
330*228*90 mm |
335*470*125 mm |
335*470*125 mm |
|||
Machine Weight/N.W. |
3.2 kg |
8.1 kg |
8.6 kg |
|||
DISPLAY AND COMMUNICATION
|
||||||
Display |
LCD Display (Display Running Mode, Loads/Input /Output etc.) |
|||||
Interface |
RS485/CAN/Dry Contact/WiFi (Optional) |
|||||
