Type 2 16A 32A 7KW 11KW 22KW EV Charger Screen Display Adjustable Current Wallbox EV Charger for car
- Overview
- Recommended Products

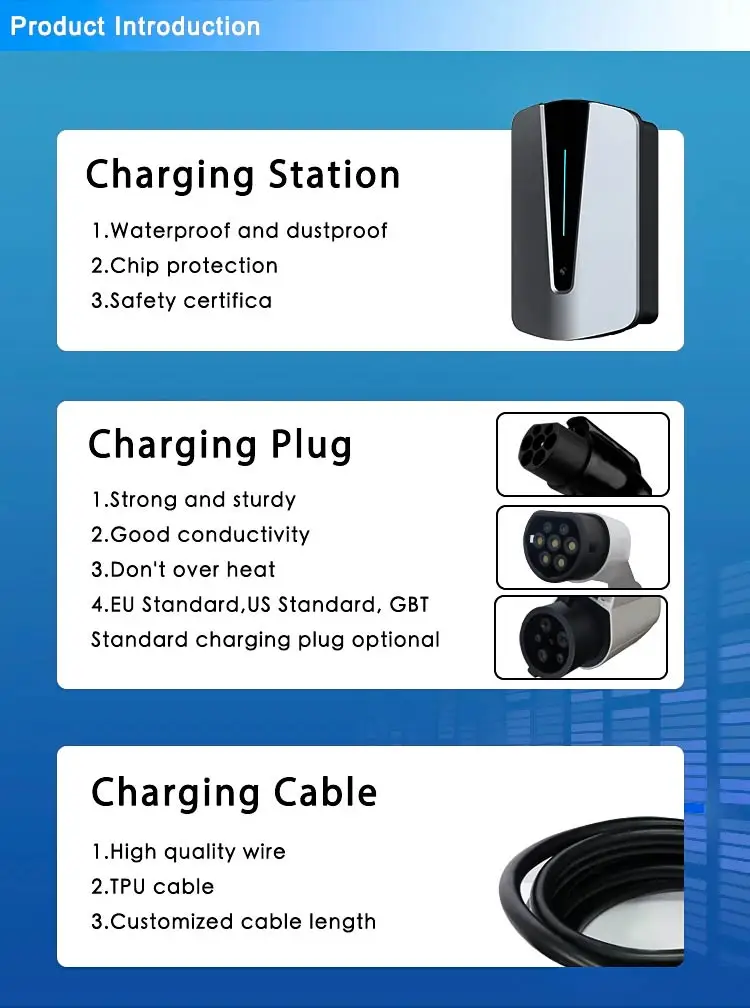

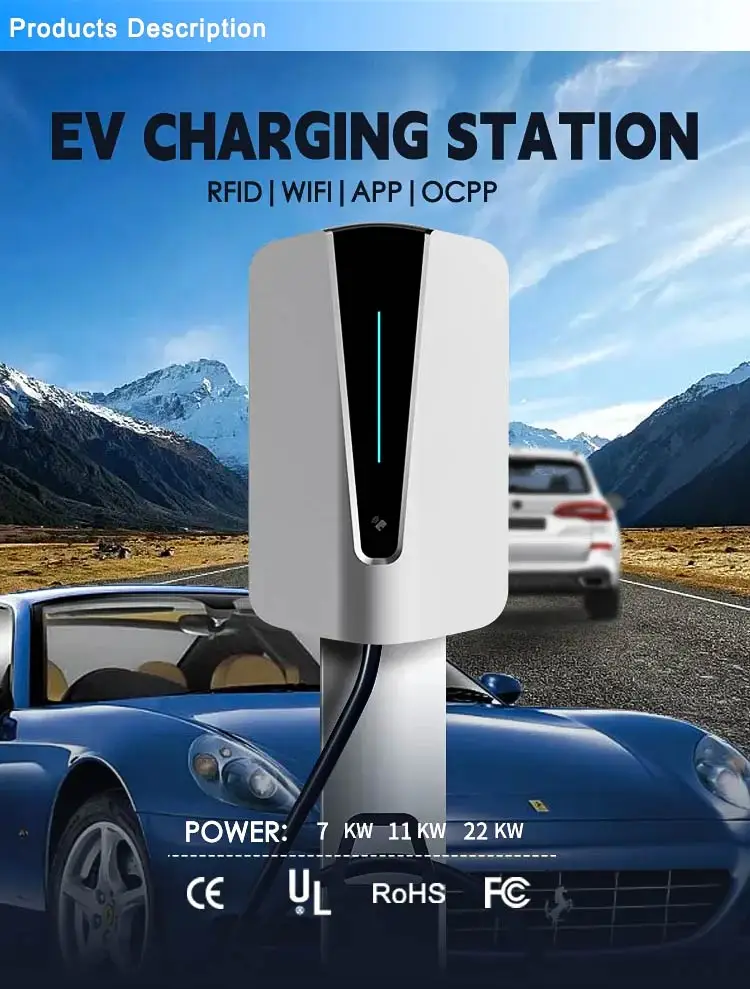

Products Description
Specification
Data sheet |
Model |
7KW |
11KW |
22KW |
Optional |
||||
Input |
Power Supply |
L+N+PE |
L1+L2+L3+N+PE |
L1+L2+L3+N+PE |
|||||
Rated voltage |
AC 230V |
AC 400V |
AC 400V |
||||||
Rated current |
32A |
16A |
32A |
||||||
Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
||||||
Output |
Output voltage |
AC 240V |
AC 400V |
AC 400V |
|||||
Output current |
32A |
16A |
32A |
||||||
Rated power |
7KW |
11KW |
22KW |
||||||
User interface |
Cable length |
5M |
Customized |
||||||
Outer case |
PC940 |
||||||||
LED indicator |
Green/blue/red (blue - standby; green - charger connected to the vehicle, flashing - charging; red - abnormal) |
||||||||
Emergency stop |
include |
||||||||
Start-up mode |
Plug-and-Play |
Yes |
|||||||
RFID Reader |
— |
Y |
N |
||||||
Screen |
4.3-inch |
— |
Y |
N |
|||||
Network |
4G |
— |
Y |
N |
|||||
RJ45 |
— |
Y |
N |
||||||
Bluetooth/WiFi |
— |
Y |
N |
||||||
Security |
RCD |
A+DC6mA |
|||||||

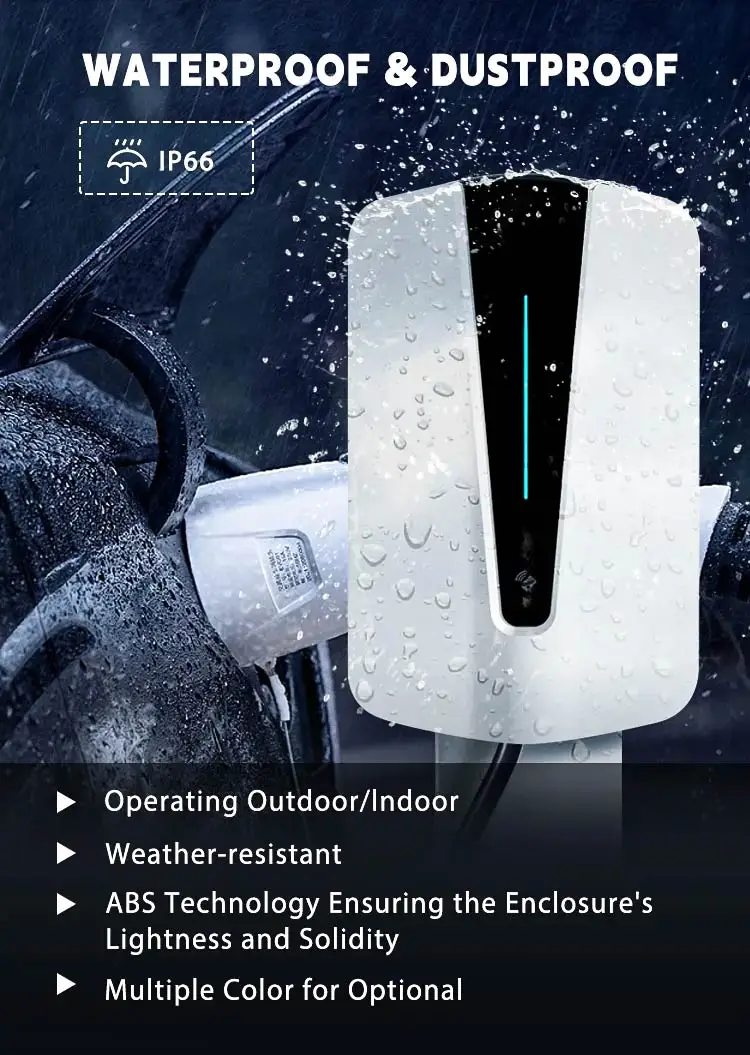

Ingress Protection |
IP66 |
||||||||
Surge Protection |
IK10 |
||||||||

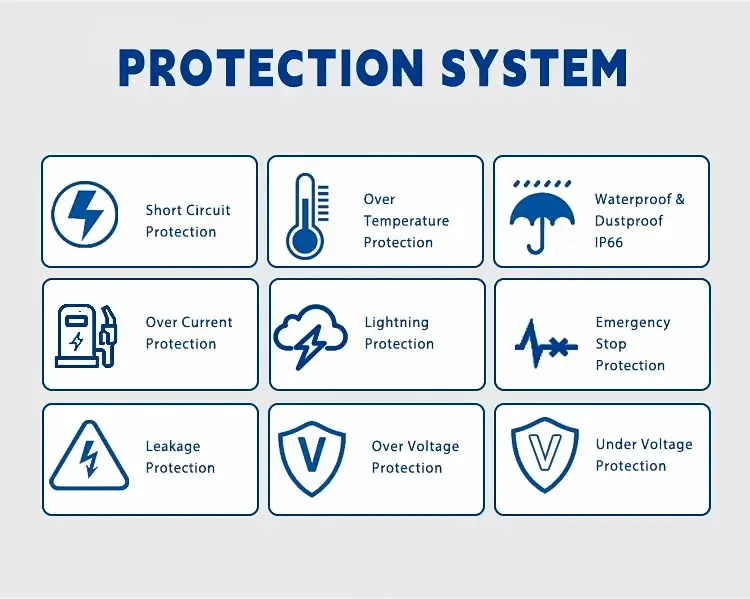

Electrical Protection |
Overvoltage protection, undervoltage protection, grounding protection, lightning protection, leakage protection, flame retardant protection, overcurrent protection, intelligent temperature control protection, relay adhesion protection, input shutdown protection, vehicle specification level protection vehicle and protective personnel |
||||||||
Warranty |
15 months |
||||||||
Cooling mode |
Natural cooling |
||||||||
Environment |

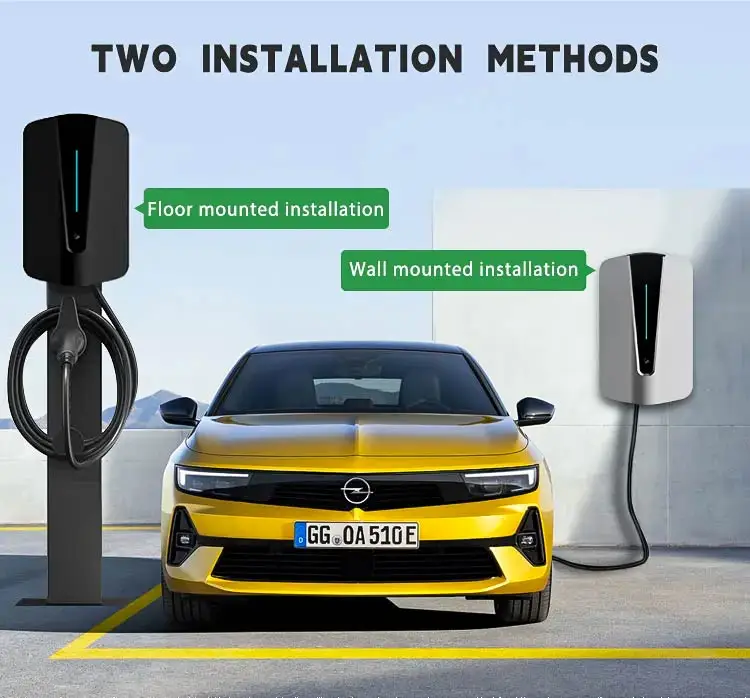

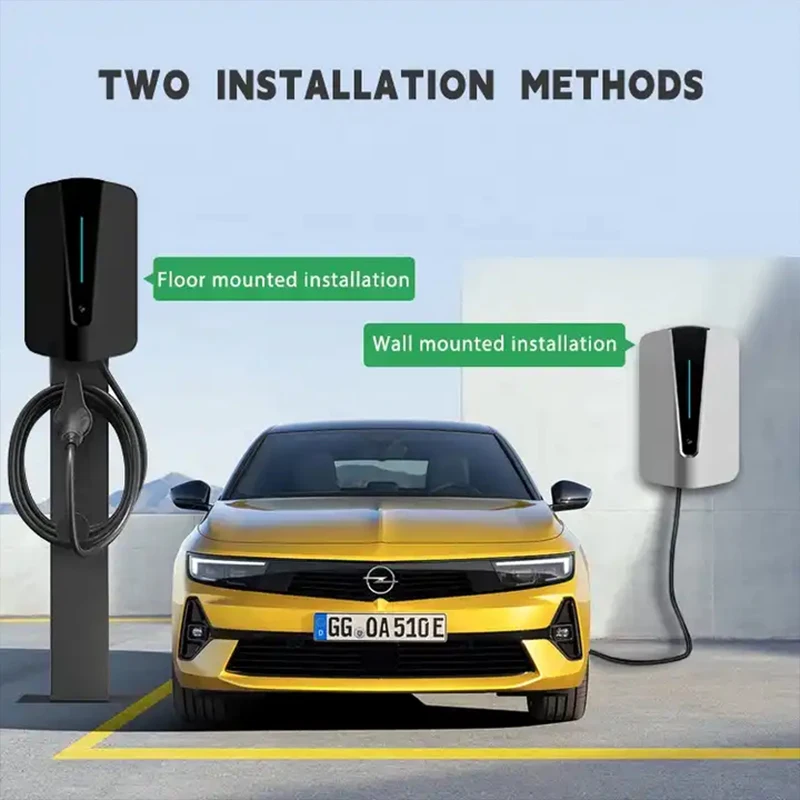

Installation |
Wall-mount/Pole-mount |
|||||||
Working Temperature |
-30℃~+50℃ |
||||||||
Storage temperature |
-40℃~+80℃ |
||||||||
Operating humidity |
5%~95% no moisture condensation or frost |
||||||||
Working Height |
<2000M |
||||||||
Specifications |
Product Dimension |
29*18*10.5cm |
|||||||
Package Dimension |
48*23*26cm |
||||||||
Net Weight |
6KG |
||||||||
Gross Weight |
7KG |
||||||||
Packing list |
Charging pile |
1Pcs |
|||||||
Instructions |
1Pcs |
||||||||
Cable |
1Pcs |
||||||||
Plug holder |
1Pcs |
||||||||
Screw (for installation) |
1Pcs |
||||||||
Outer packaging |
Carton |
||||||||
Other |
Efficiency |
≥98 |
|||||||
Insulation resistance |
≥10MΩ |
||||||||
Power of control module |
≤7W |
||||||||
Terminal |
include |
||||||||
Our Factory
PUFA POWER is a professional manufacturer specializing in high-quality power stations, charging solutions, and related accessories. Since 2009, our company has ventured into the power industry. With years of unwavering dedication to this sector, we have amassed extensive expertise that empowers us to deliver top-notch products and services to our esteemed clientele. Our bases are strategically located in Guangdong and Jiangxi provinces, occupying a factory area of 8000m² and employing over 100 employees. As a recognized national high-tech enterprise, we have an autonomous R&D team that is at the forefront of technological advancements within the industry. Welcome to explore our website and learn more about our innovative solutions.
