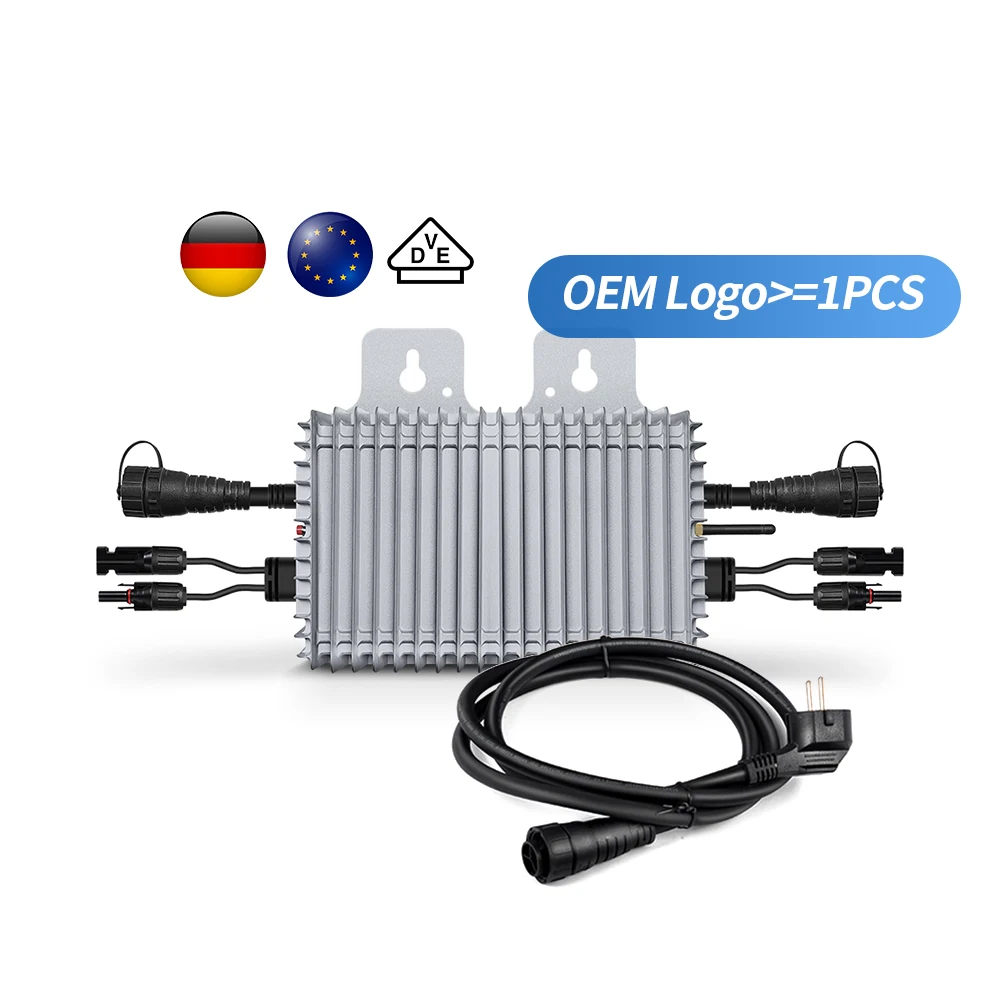

600W 800W 1200W Home Use on Grid Micro Inverter HM-1200 Solar Inverter for Home Use Solar Power
- Overview
- Recommended Products

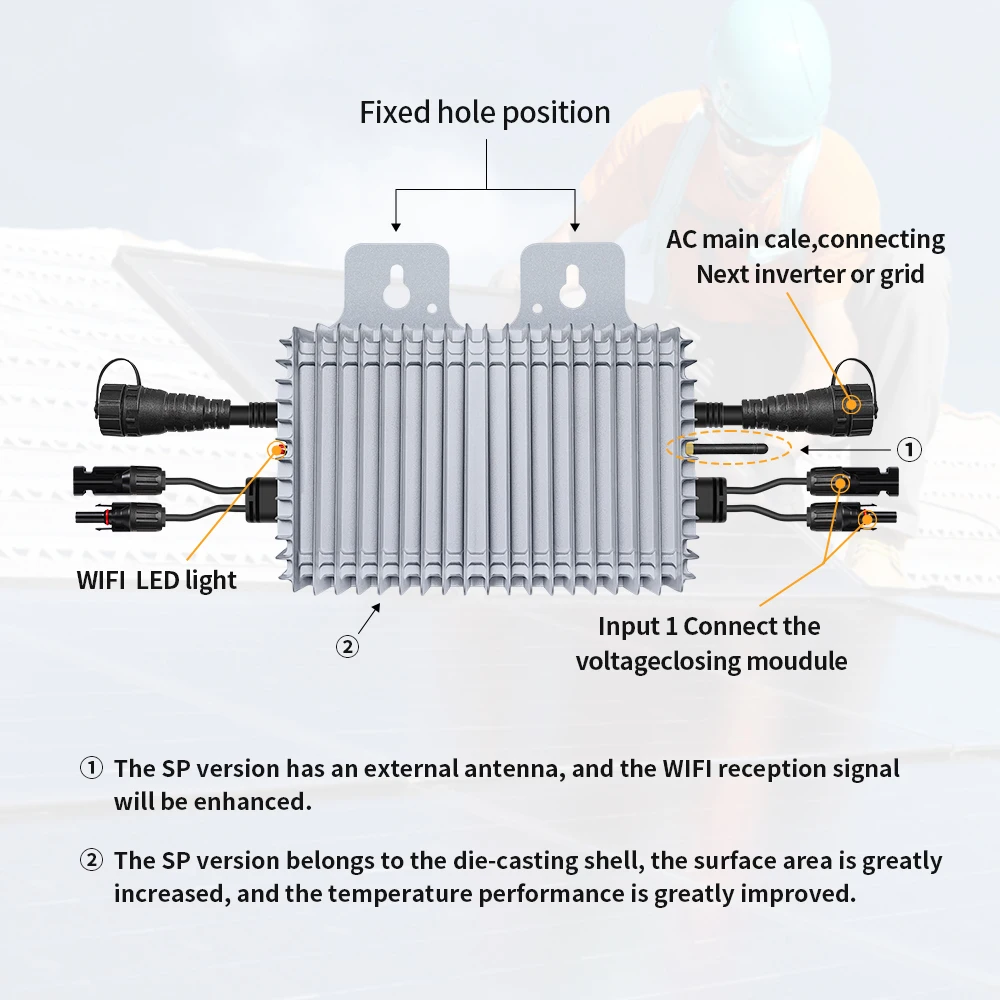

Products Description
Specification
Model |
MSP-1200 |
MSP-1400 |
MSP-1600 |
MSP-2000 |
MSP-2400 |
MSP-2800 |
|||||
Commonly used module power (W) |
Max |
Max |
Max |
Max |
Max |
Max |
|||||
4*375W |
4*430W |
4*500W |
4*625W |
4*750W |
4*875W |
||||||
Peak power MPPT voltage range (V) |
30-60 |
||||||||||
Start-up voltage (V) |
22 |
||||||||||
Operating voltage range (V) |
22- -60 |
||||||||||
Maximum input voltage (V) |
60 |
||||||||||
Maximum input current (A) |
4x12 |
4x 14 |
4x 16 |
4x 20 |
4x23 |
4x27 |
|||||
Maximum input short-circuit current (A) |
4x 14 |
4x 16 |
4x 18 |
4x 23 |
4x28 |
4x32 |
|||||
Maximum backfed current to array (A) |
0 |
||||||||||
Rated output power (VA) |
1200 |
1400 |
1600 |
2000 |
2400 |
2800 |
|||||
Rated output current (A) |
10 @120V |
11.6 @120V |
133 @120 V |
16.6 @120V |
20 @120V |
23.5 @120V |
|||||
5.22 @230 V |
6 @230 V |
6.95 @230V |
8.7 @230V |
10.5 @230 V |
12.2 @230v |
||||||
Nominal output voltage/range (V) |
@120V 85-160VAC @230V 180-265VAC |
||||||||||
Nominal frequencylrange (Hz) |
@120V 48-51Hz/58-61Hz @230V 48-51Hz/58-61Hz |
||||||||||
Power factor |
> 0.99 default 0.8 leading..0.8 lagging |
||||||||||
Output current harmonic distortion |
< 3% |
||||||||||
Maximum units per branch |
3@120V |
3@120V |
3@120 V |
3@120V |
2@120V |
2@120V |
|||||
6@230V |
6@230V |
6@230V |
6@230V |
4@230V |
4@230V |
||||||
Peak microinverter eficiency |
92.70% |
||||||||||
CEC weighted eficiency |
92.50% |
||||||||||
Nominal MPPT efficiency |
99.80% |
||||||||||
Night time power consumption (mW) |
<50 |
||||||||||
Ambient temperature range (*C) |
-20 to +50 |
||||||||||
Storage temperature range (9C) |
-20 to +50 |
||||||||||
Dimensions (W xH x D mm) |
370x 300x 41.6 |
||||||||||
Weight (kg) |
2.52 |
2.52 |
2.52 |
3.16 |
3.16 |
3.16 |
|||||

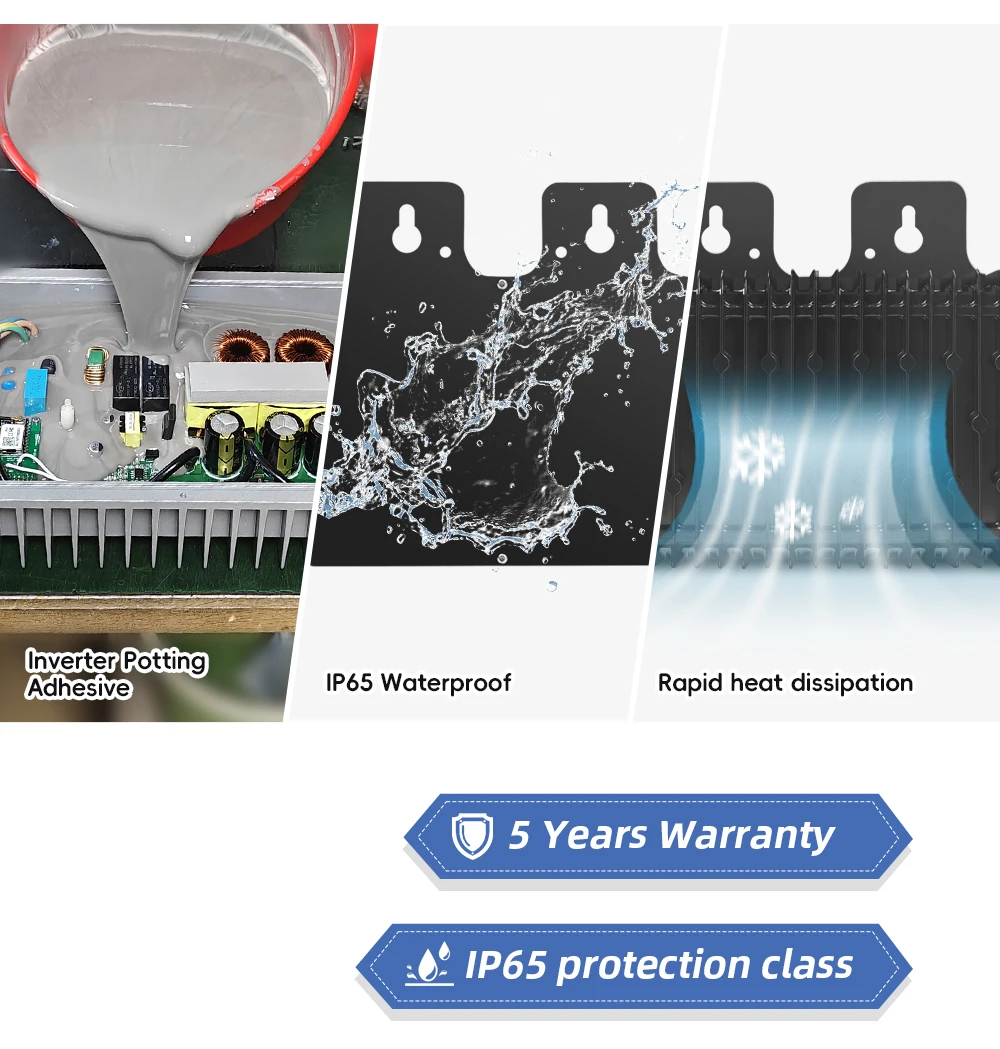

Waterproof level |
Outdoor NEMA 3R (IP65) |
||||||||||
Cooling method |
Natural convection (no fans) |
||||||||||
Degree of pollution |
Pd3 |
||||||||||
Power Delivery Mode |
Reverse transmission, load priorty |
||||||||||
Communication method |
WiFi |
||||||||||
Surveillance system |
Cloud Intelligence |
||||||||||
Warranty |
5 yars |
||||||||||
Electrical Standard |
EN 50549-1:2019. EN 50549-2:2019 EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011+AC2012 IEC/EN 62109-1:2010 IEC/EN 62109-2:2011 |
||||||||||

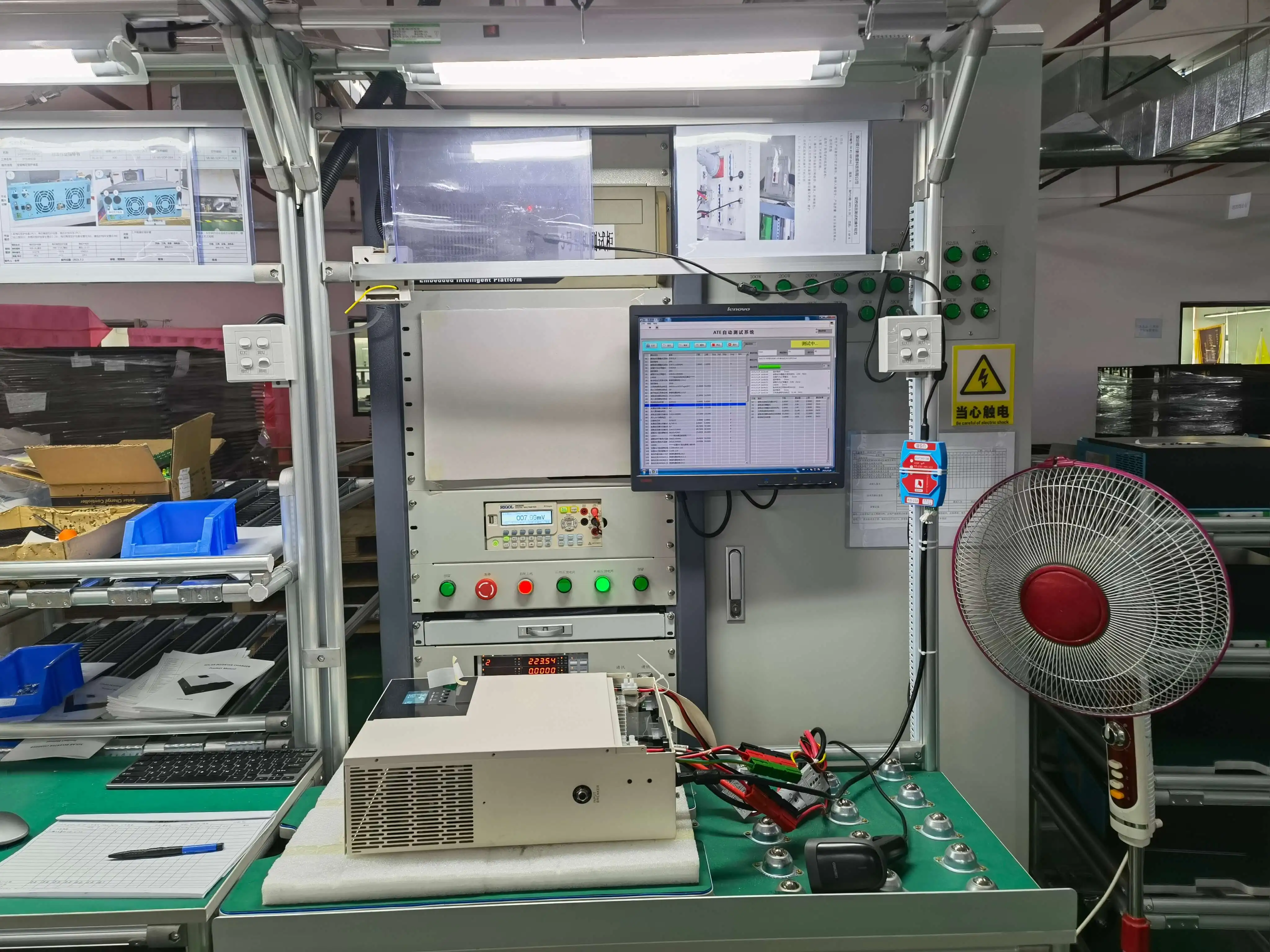

Our Factory
PUFA POWER is a professional manufacturer specializing in high-quality power stations, charging solutions, and related accessories. Since 2009, our company has ventured into the power industry. With years of unwavering dedication to this sector, we have amassed extensive expertise that empowers us to deliver top-notch products and services to our esteemed clientele. Our bases are strategically located in Guangdong and Jiangxi provinces, occupying a factory area of 8000m² and employing over 100 employees. As a recognized national high-tech enterprise, we have an autonomous R&D team that is at the forefront of technological advancements within the industry. Welcome to explore our website and learn more about our innovative solutions.

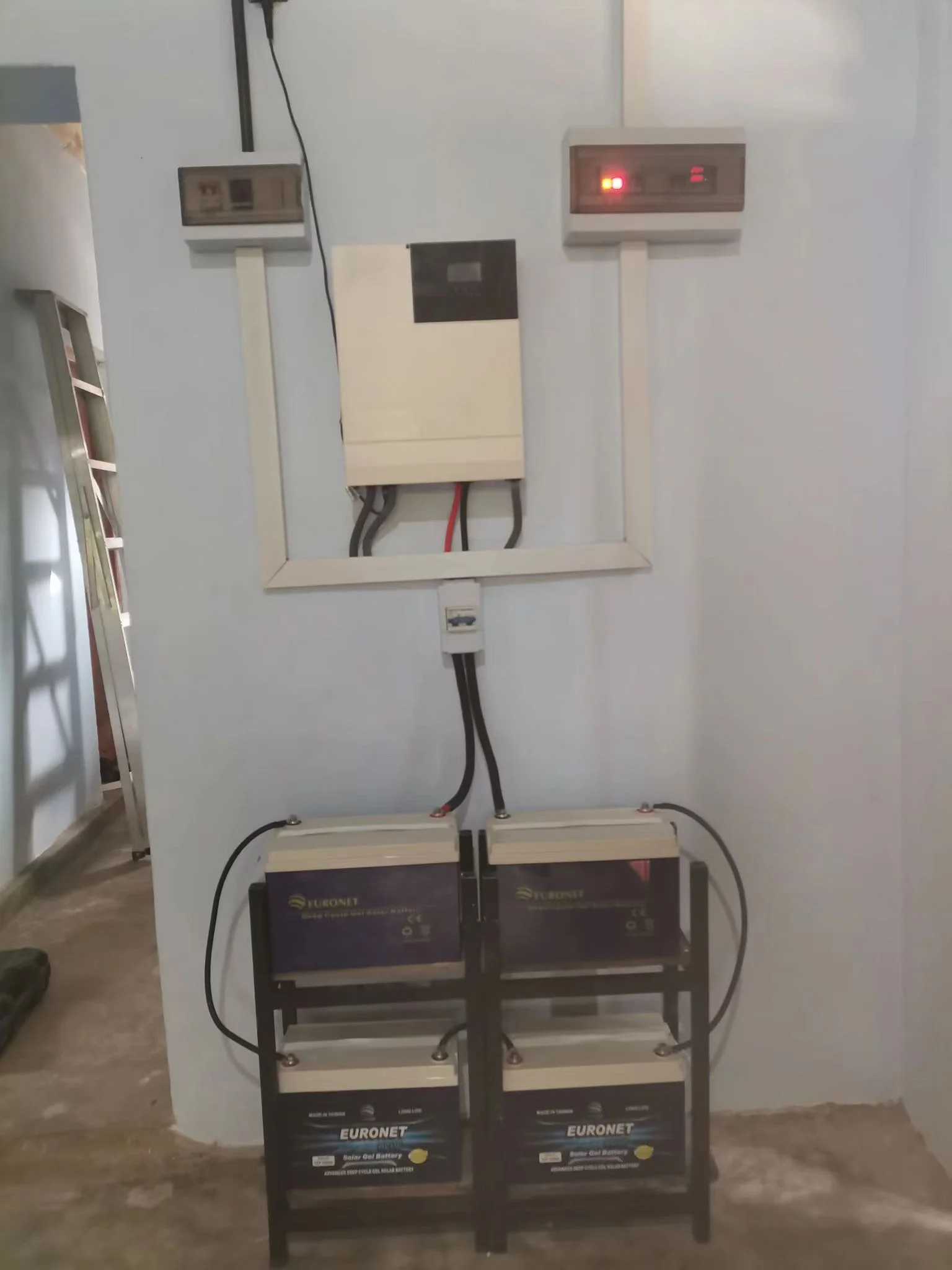

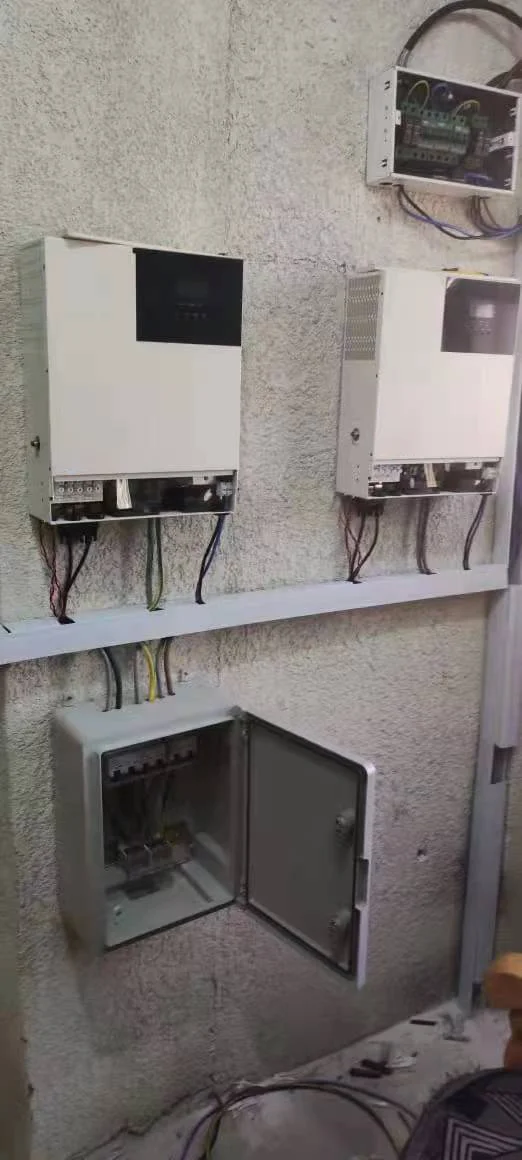

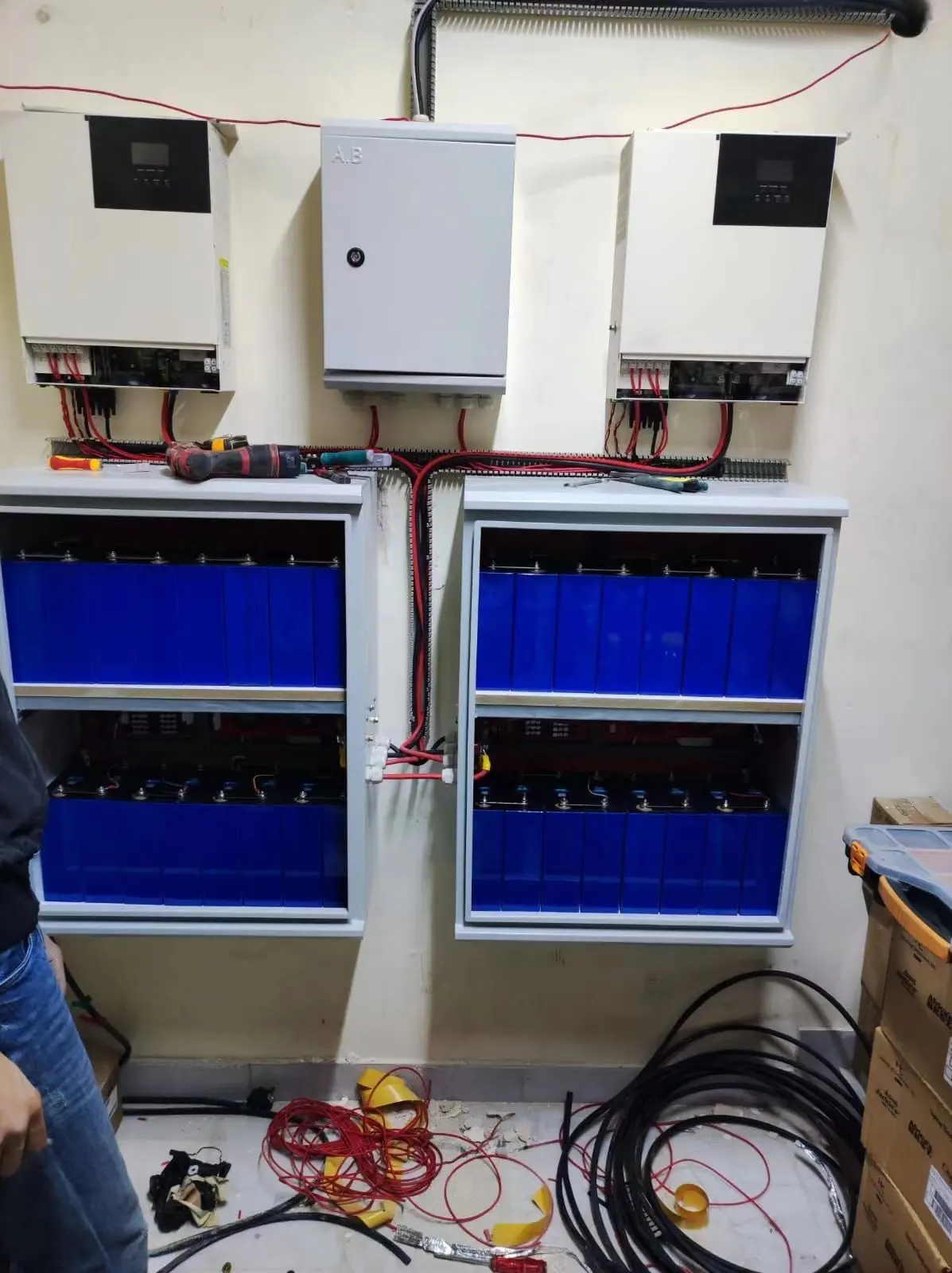

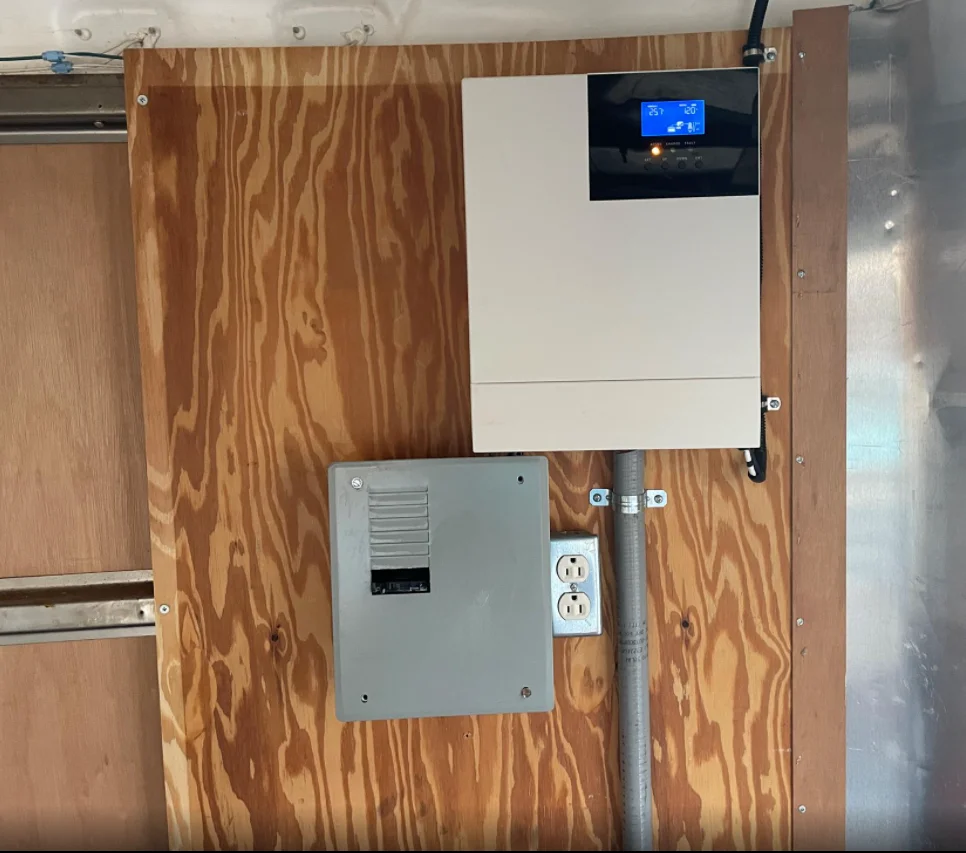

Projects
