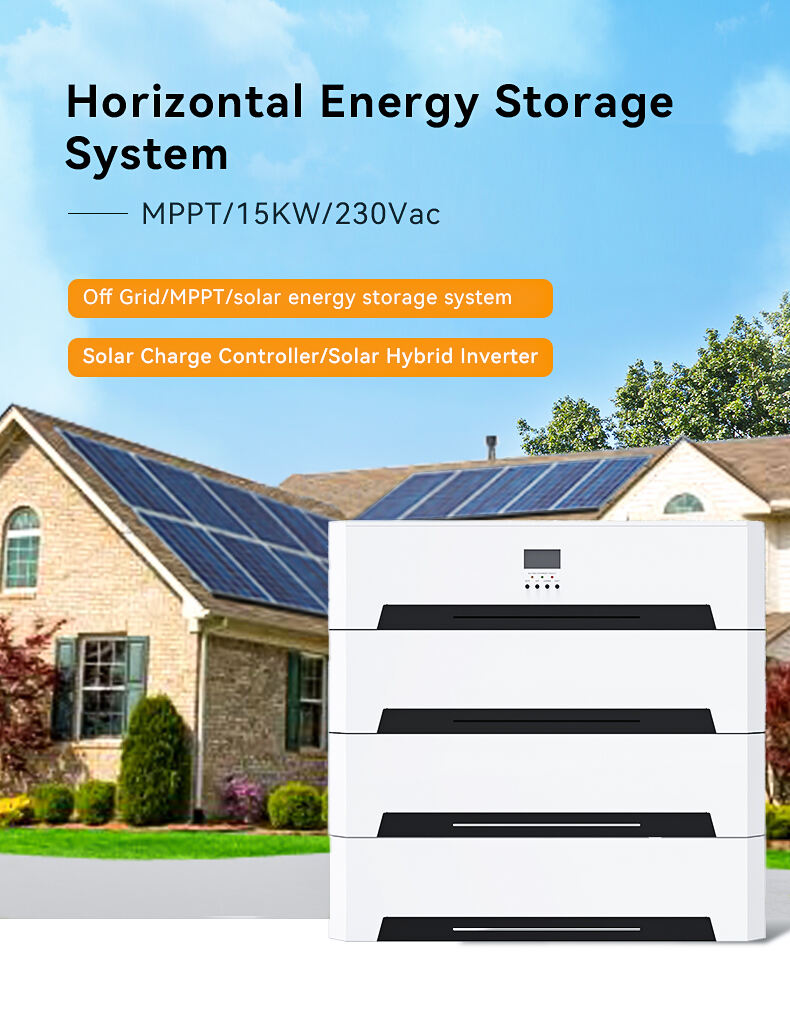

PUFA 51.2v 100ah Solar Lithium Battery Home Energy Storage System 10kwh 20kwh Home Use Solar Power Energy Storage System
- Overview
- Recommended Products

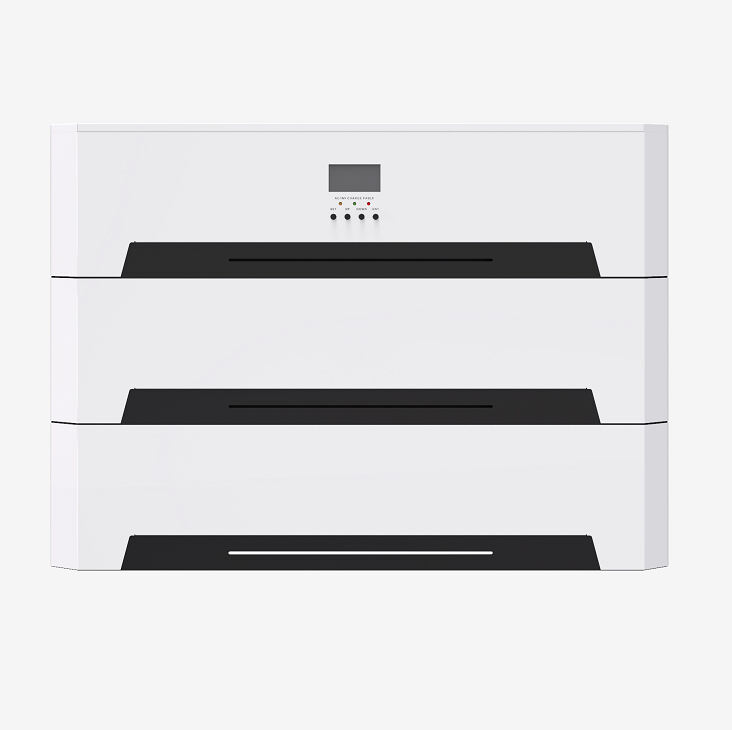

Introducing, the PUFA 51.2v 100ah Solar Lithium Battery Home Energy Storage System, designed to provide reliable and efficient energy storage for your home. This state-of-the-art system is perfect for those looking to harness the power of solar energy and reduce their dependence on traditional grid electricity.

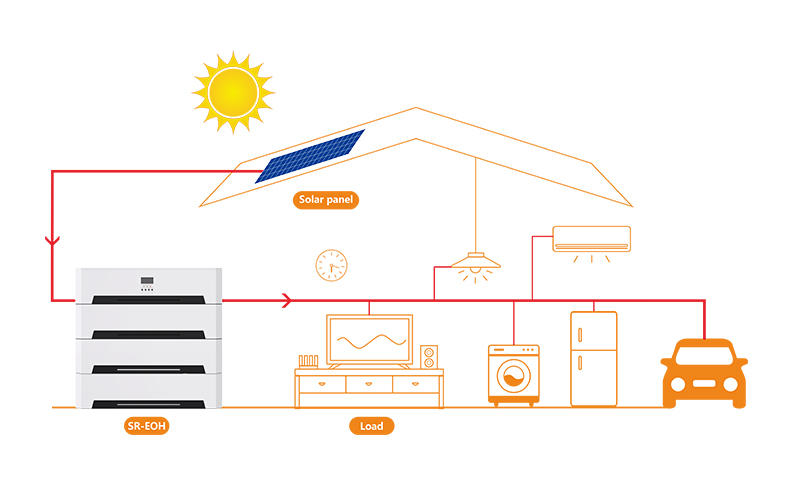

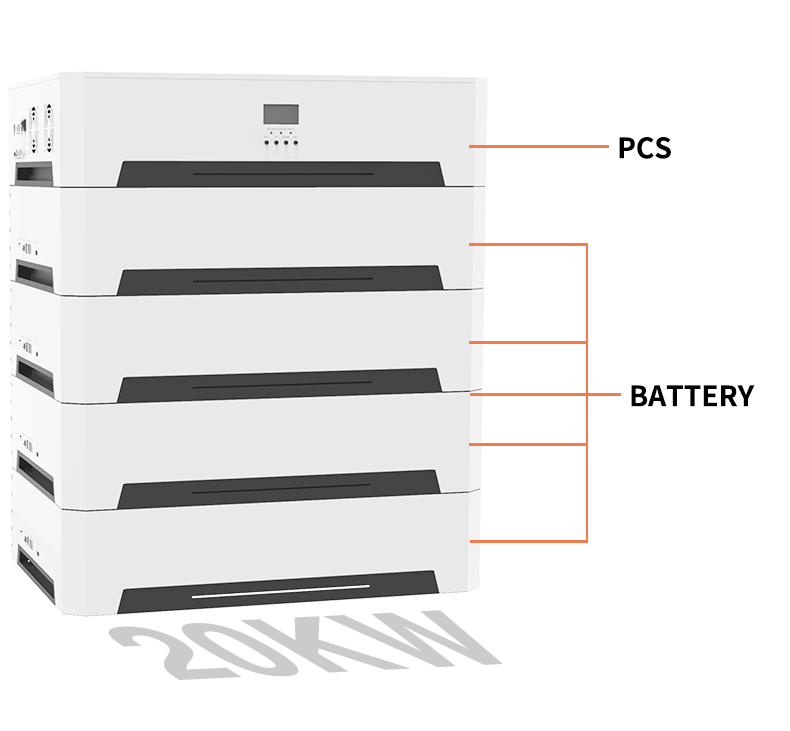

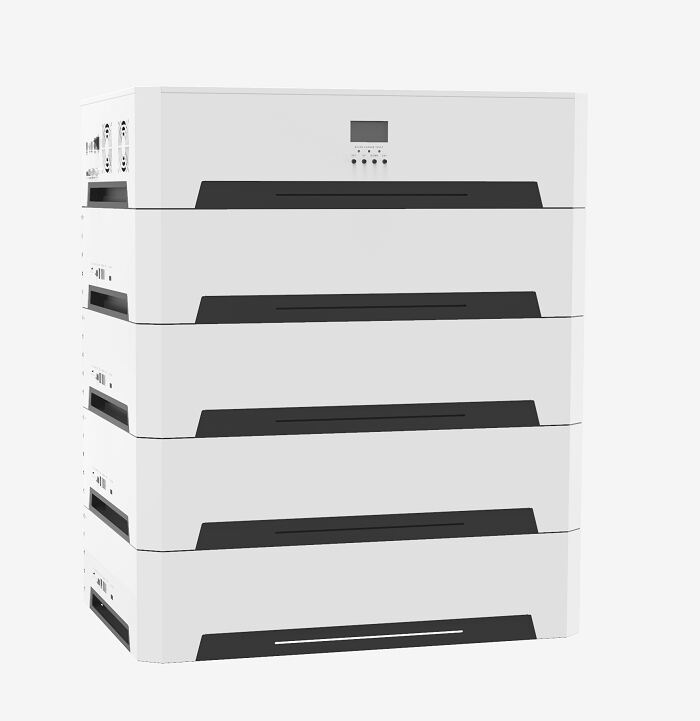

The PUFA Home Energy Storage System utilizes advanced lithium battery technology to store energy from solar panels, allowing you to power your home with clean and sustainable energy. With a capacity of 10kwh or 20kwh, this system offers ample energy storage for all your household needs.
Whether you are looking to reduce your carbon footprint or simply save on your electricity bills, the PUFA Home Energy Storage System is the perfect solution. Say goodbye to fluctuating energy prices and never worry about power outages again.
This innovative system is easy to install and operate, making it suitable for both DIY enthusiasts and professional installers. With its compact design and user-friendly interface, you can easily monitor and control your energy consumption from anywhere in the world.
The PUFA Home Energy Storage System is not only reliable but also durable, with a long lifespan that ensures years of trouble-free operation. Its high-quality construction and superior performance make it a valuable investment for any homeowner looking to go green.
The PUFA 51.2v 100ah Solar Lithium Battery Home Energy Storage System. Trust in the PUFA brand for all your energy storage needs and enjoy the benefits of clean, renewable energy for years to come. Order your system today and start reaping the rewards of a more sustainable and eco-friendly lifestyle

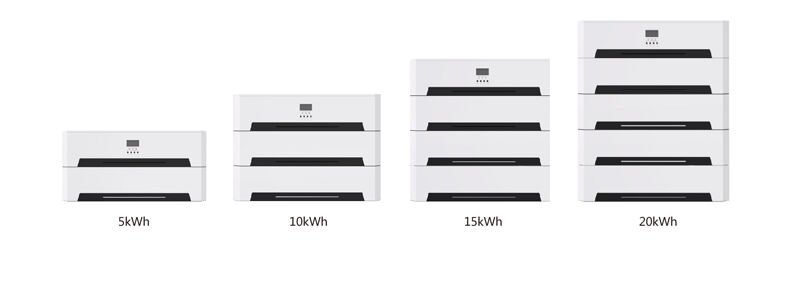

Model |
EOH48-5.0S-S1 |
EOH48-10.0S-S1 |
EOH48-15.0S-S1 |
EOH48-20.0S-S1 |
|
BATTERY |
|||||
Battery Module |
1 |
2 |
3 |
4 |
|
Battery Energy |
5.12kWh |
10.24kWh |
15.36kWh |
20.48kWh |
|
Battery Capacity |
100AH |
200AH |
300AH |
400AH |
|
Weight |
80kg |
133kg |
186kg |
239kg |
|

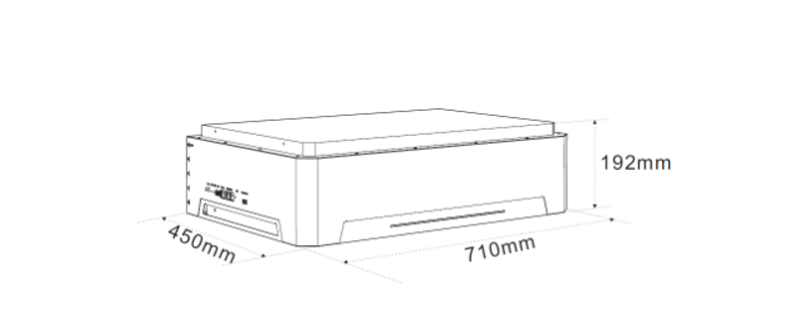

Dimension L× D× H |
710×450×400 |
710×450×600 |
710×450×800 |
710×450×1000 |
|
Battery Type |
LiFePO4 |
||||
Battery Rated Voltage |
51.2V |
||||
Battery Working Voltage Range |
44.8 ～57.6V |
||||
Maximum Charging Current |
100A |
||||
Maximum Discharging Current |
100A |
||||
DOD |
80% |
||||
Parallel Quantity |
4 |
||||
Designed Life-span |
6000 |
||||
PV CHARGE |
|||||
Solar Charge Type |
MPPT |
||||
Maximum Output Power |
5kw |
||||
PV Charging Current Range |
0～80A |
||||
PV Operating Voltage Range |
120～500V |
||||
MPPT Voltage Range |
120～450V |
||||
AC CHARGE |
|||||
Maximum Charge Power |
3150W |
||||
AC Charging Current Range |
0～60A |
||||
Rated Input Voltage |
220/230Vac |
||||
Input Voltage Range |
90～280Vac |
||||
AC OUTPUT |
|||||
Rated Output Power |
5KW |
||||
Maximum Output Current |
30A |
||||
Frequency |
50Hz |
||||
Overload Current |
35A |
||||
BATTERY INVERTER OUTPUT |
|||||
Rated Output Power |
5KW |
||||
Maximum Peak Power |
10KVA |
||||
Rated Output Voltage (Vac) |
230Vac |
||||
Frequency |
50Hz |
||||
GENERAL DATA |
|||||
Certification |
UN38.3, MSDS, EN55032, EN55024, EN61000-3-2, EN61000-3-3 |
||||
Ingress Protection Rating |
IP20 |
||||
2、Advanced MPPTtechnology, with efficiency up to 99.9%
3、Four optional charge modes: only solar energy, mains priority, solar energy priority and mixed charge.
4、Possessing complete short circuit protection, overvoltage and under voltage protection, overload protection, back filling protection, etc
Payment Term |
T/T |
EXW |
30% T/T in advance, paid the balance before shipment |
|||
FOB |
||||||
CNF |
30% T/T in advance, paid the balance against copy of B/L |
|||||
CIF |
||||||
L/C |
L/C amount above 50,000 usd, we can accept L/C at sight |
|||||
West Union |
Amount lower than 5000usd |
|||||
Delivery Time |
7~10days after receiving payment for one container |
|||||
